Home >> Hyundai >> 2013 >> Elantra GLS, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Timing Chain >> Components and Components Location >> Components

Components and Components Location: Components

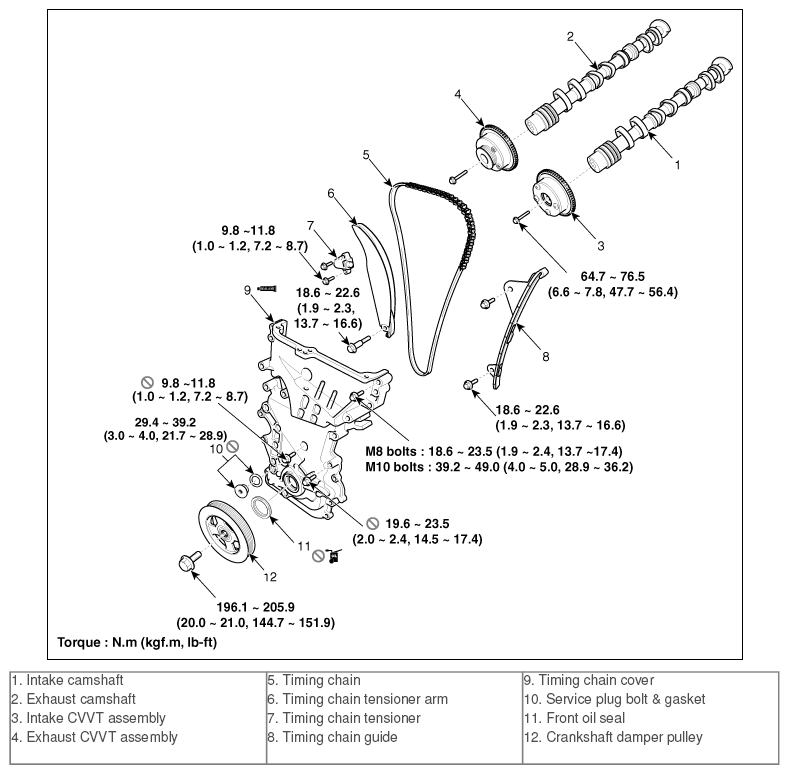

Fig 1: Timing Chain Components With Torque Specifications

G10234034

Courtesy of HYUNDAI MOTOR AMERICA
