Components and Components Location: Components

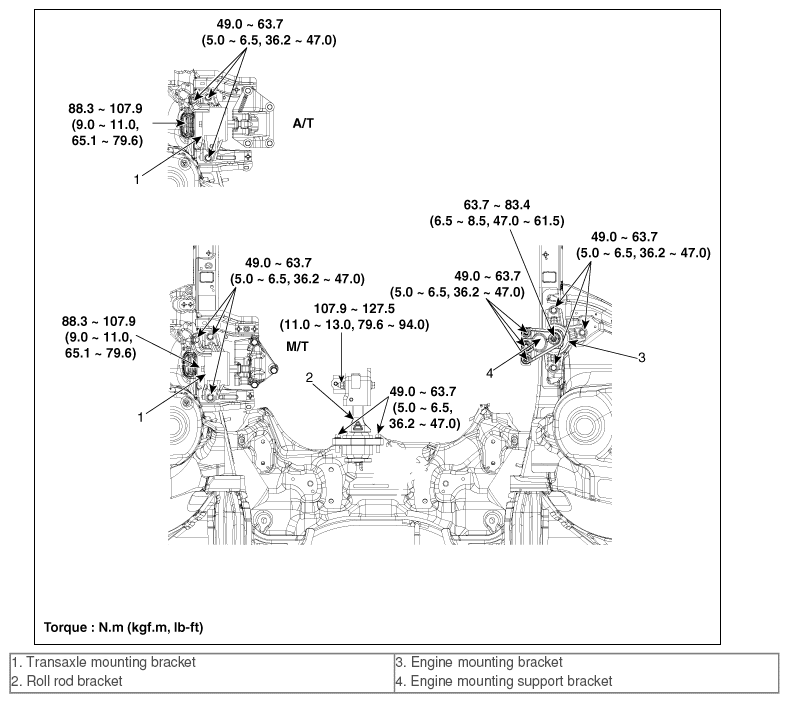

Fig 1: Engine Mounting Components And Locations With Torque Specifications

G10234003

Courtesy of HYUNDAI MOTOR AMERICA
