Home >> Hyundai >> 2013 >> Elantra GLS, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System >> Components and Components Location >> Components

Components and Components Location: Components

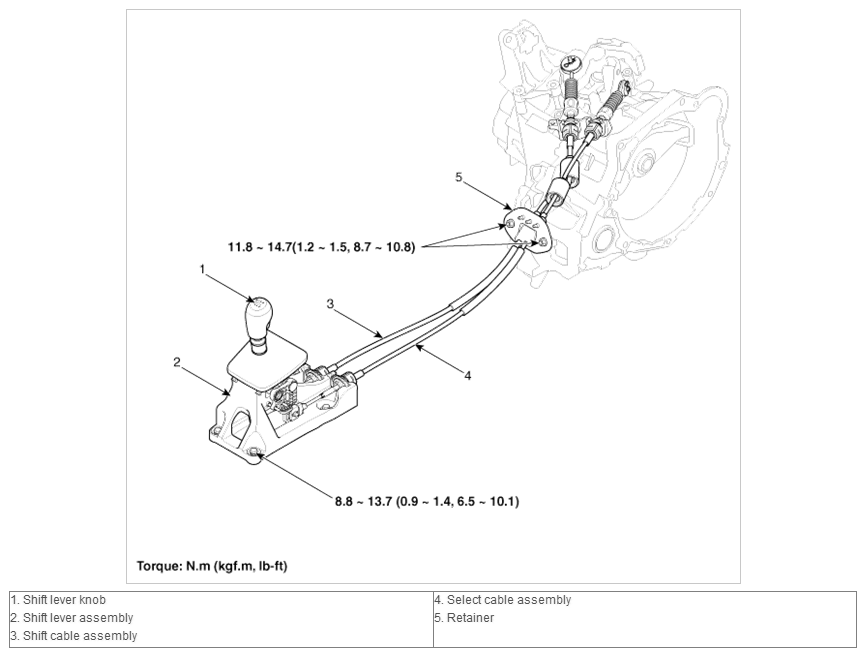

Fig 1: Manual Transaxle Control System Components Locations With Torque Specifications

G10234961

Courtesy of HYUNDAI MOTOR AMERICA
