Repair procedures: Inspection

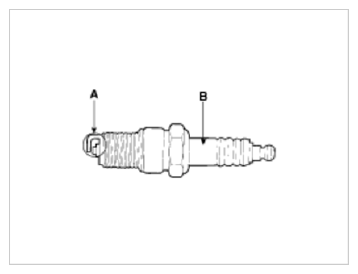

Inspect the electrodes (A) and ceramic insulator (B).

Fig 1: Identifying Electrodes And Ceramic Insulator

Courtesy of HYUNDAI MOTOR AMERICA

ELECTRODES DESCRIPTION

Condition	Dark deposits	White deposits
Description	Fuel mixture too rich Low air intake	Fuel mixture too lean Advanced ignition timing Insufficient plug tightening torque

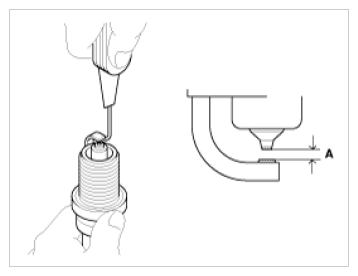

Check the electrode gap (A).
Standard: 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.)

Fig 2: Checking Electrode Gap
Courtesy of HYUNDAI MOTOR AMERICA
