Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the accelerator pedal module. (Refer to "ACCELERATOR PEDAL ")
  3. Disconnect the smart key unit connector, and then remove the bracket and smart key unit (A) after loosening the screw and nut.

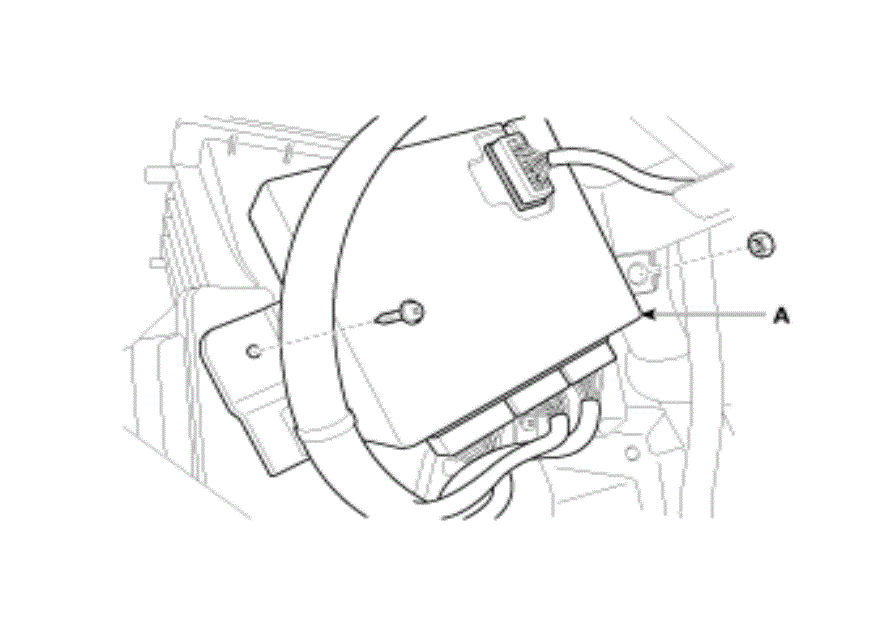

    Fig 1: Identifying Bracket And Smart Key Unit Screw And Nut
    G08814182Courtesy of HYUNDAI MOTOR AMERICA
