Components Location

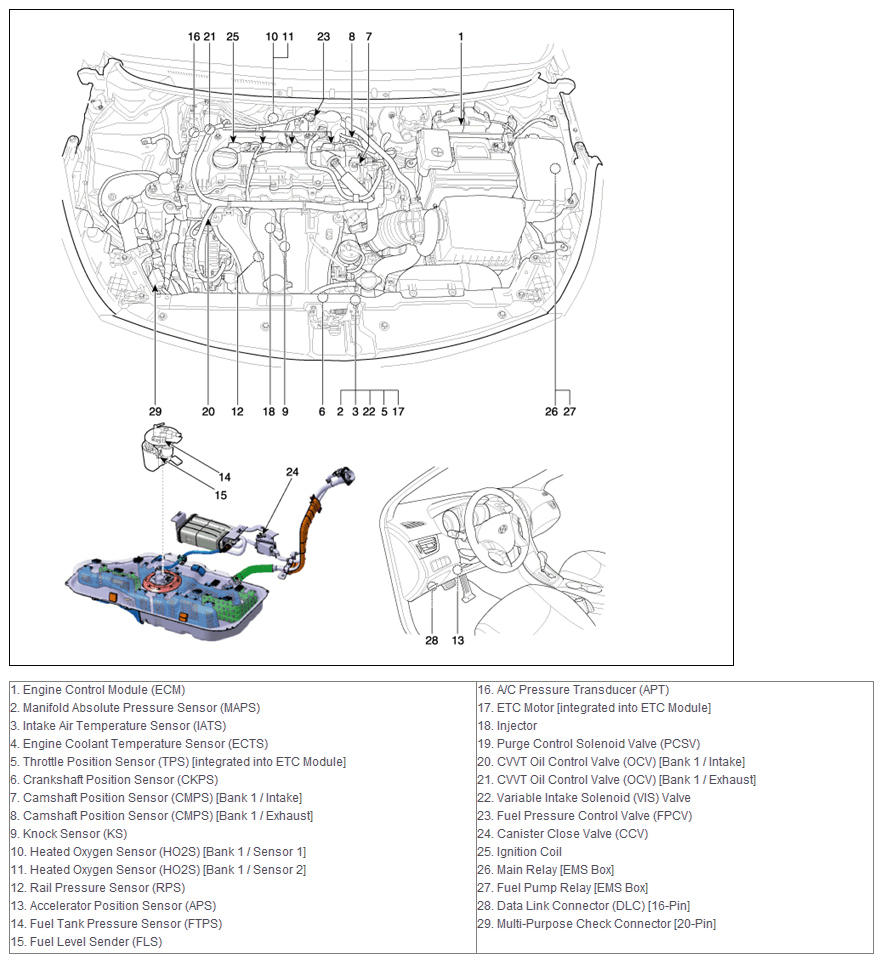

Fig 1: Engine Control System Component Locations (1 Of 4)
G10255675Courtesy of HYUNDAI MOTOR AMERICA

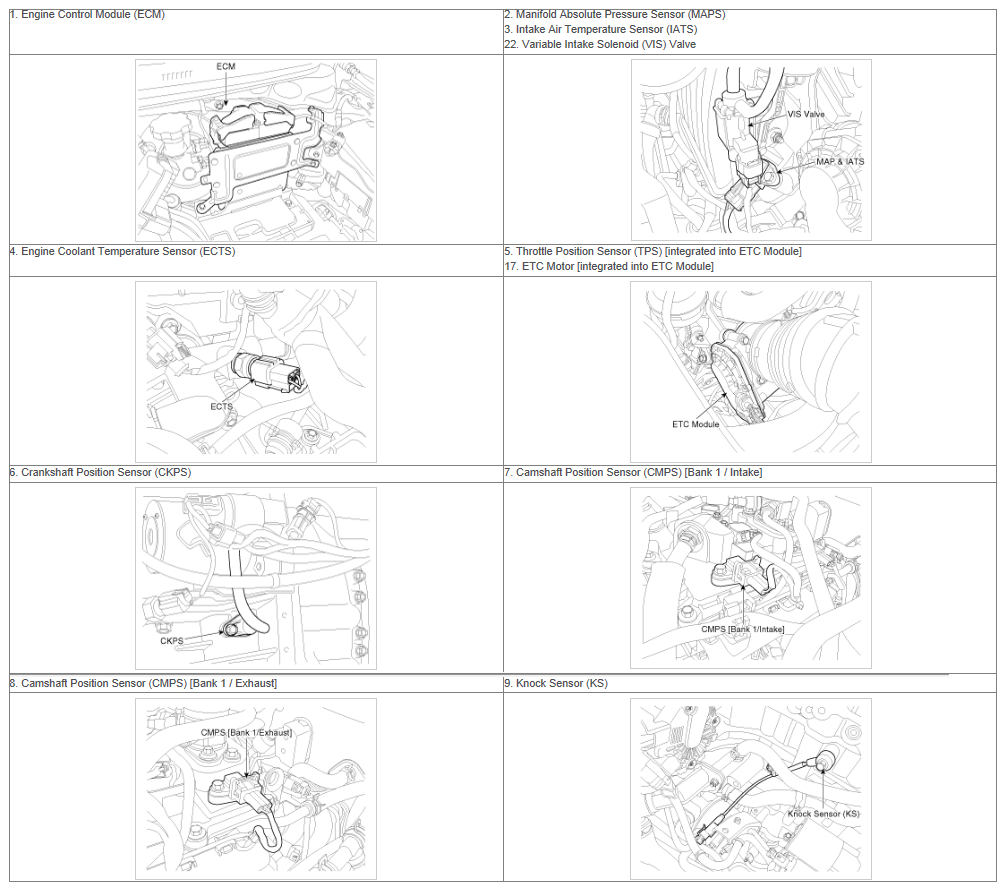

Fig 2: Engine Control System Component Locations (2 Of 4)
G10255676Courtesy of HYUNDAI MOTOR AMERICA

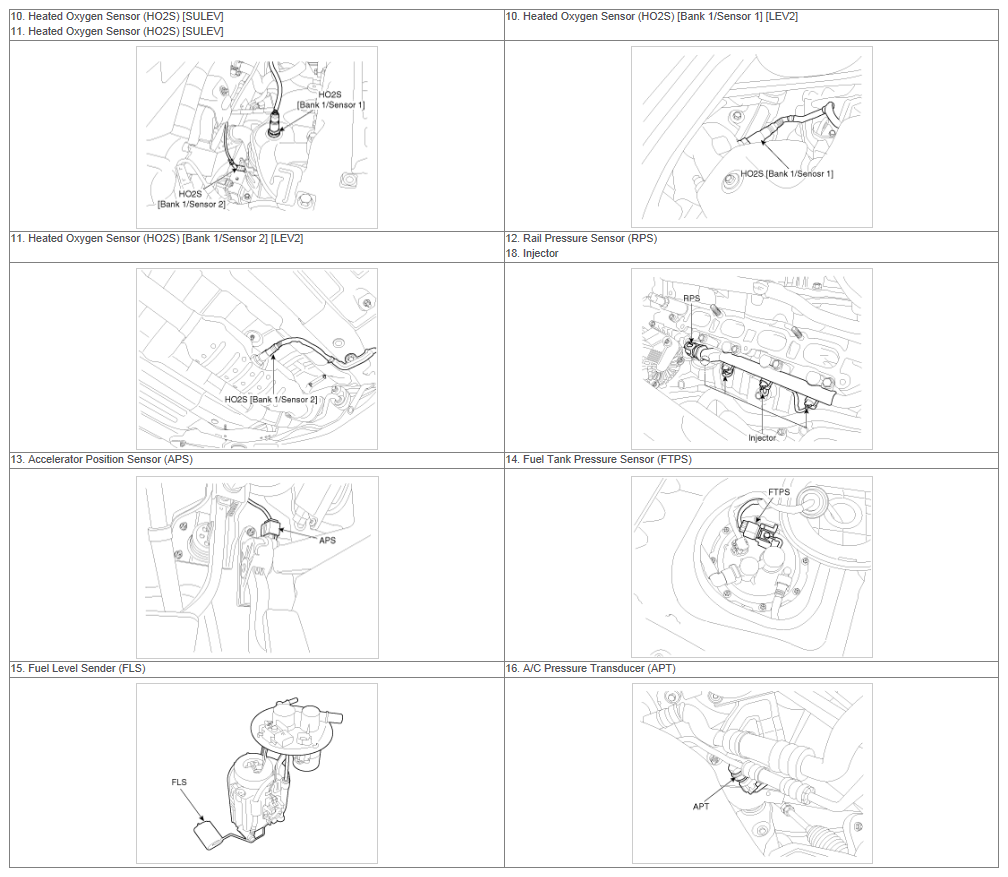

Fig 3: Engine Control System Component Locations (3 Of 4)
G10255677Courtesy of HYUNDAI MOTOR AMERICA

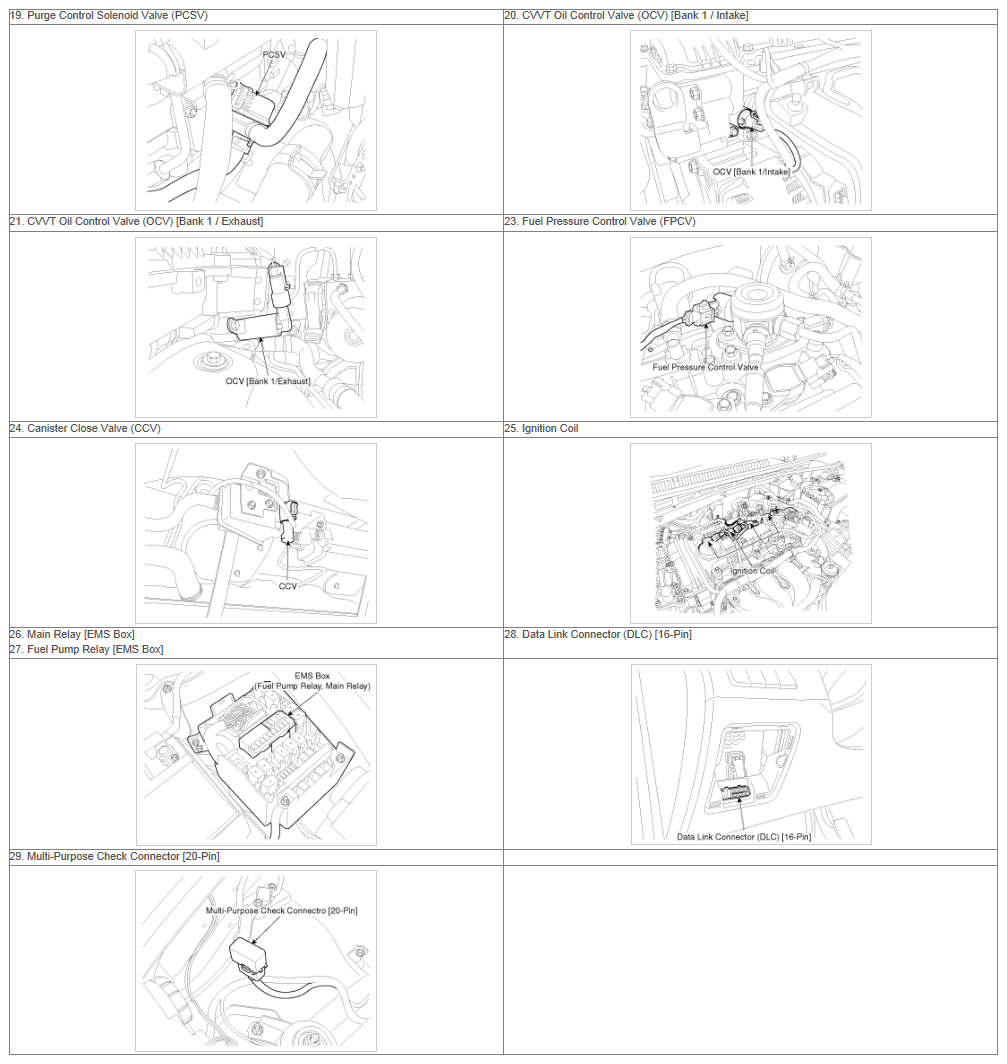

Fig 4: Engine Control System Components Location (4 Of 4)
G10254896Courtesy of HYUNDAI MOTOR AMERICA
