Components and Components Location: Components

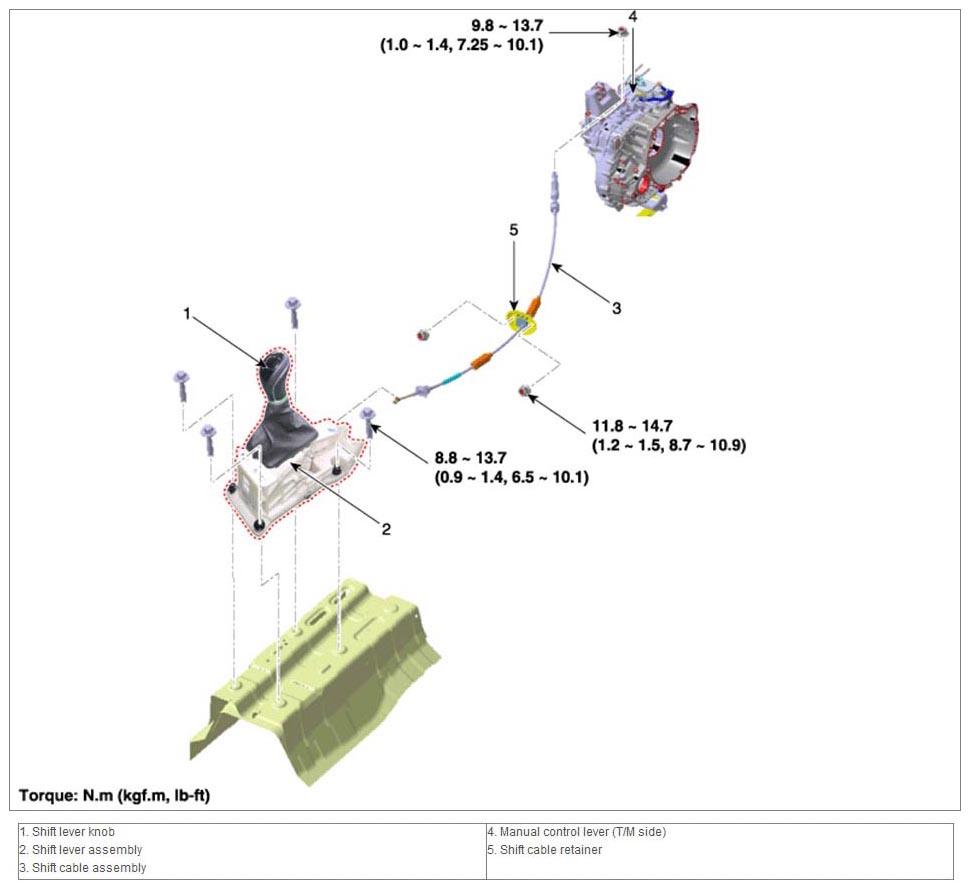

Fig 1: Shift Lever Components With Torque Specifications

G10256006

Courtesy of HYUNDAI MOTOR AMERICA
