Repair procedures: Installation

  1. Installation is the reverse of removal.
    NOTE: After replacement or reinstallation procedure of the valve body assembly, must perform procedures below.
    • Adding Automatic Transaxle Fluid (ATF).

      (Refer to "FLUID ")

    • Perform Transaxle Control Module (TCM) learning after replacing the valve body to prevent slow transaxle response, jerky acceleration and jerky startup.

      (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")

    • Use new valve body gasket (A).

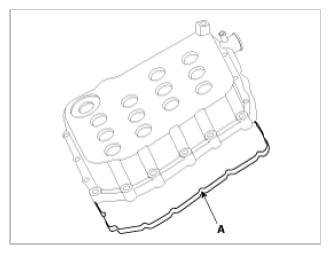

    Fig 1: Identifying Valve Body Gasket
    G09886242Courtesy of HYUNDAI MOTOR AMERICA
