Component Location

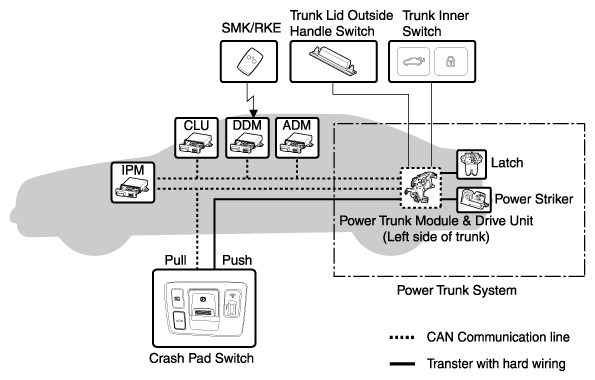

Fig 1: Power Trunk Module Components Location
G09791245Courtesy of HYUNDAI MOTOR AMERICA

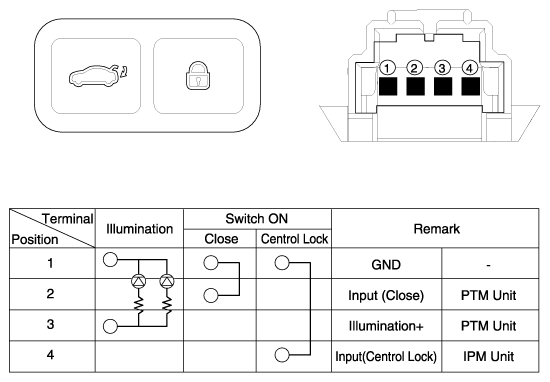

Fig 2: Identifying Power Trunk Module Connector Pins
G09791246Courtesy of HYUNDAI MOTOR AMERICA
