Home >> Hyundai >> 2014 >> Equus Signature >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Timing chain >> Components and Components Location >> Components

Components and Components Location: Components

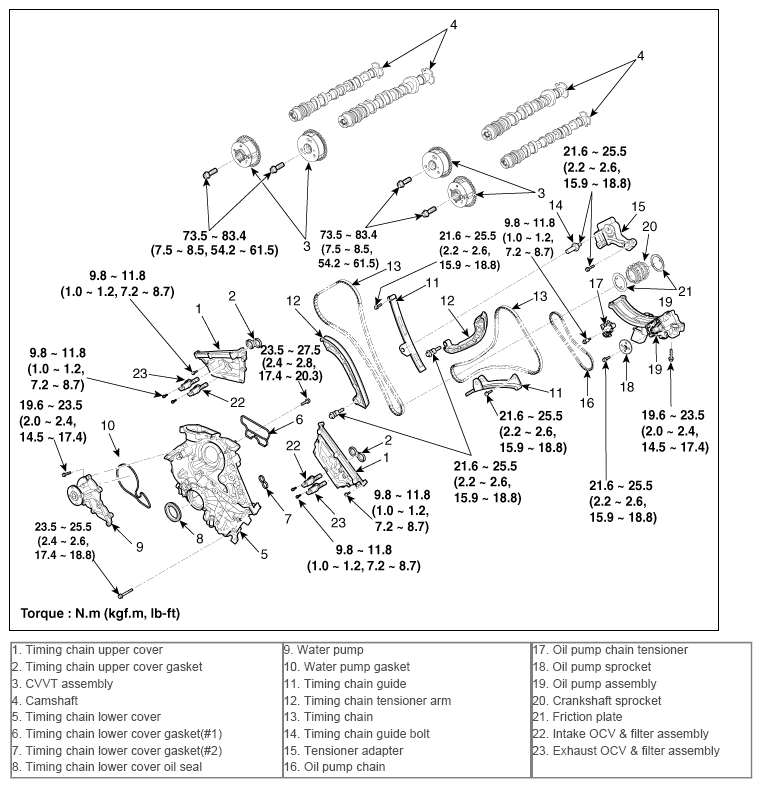

Fig 1: Timing Chain Components Location With Torque Specifications

G09788749

Courtesy of HYUNDAI MOTOR AMERICA
