Home >> Hyundai >> 2014 >> Genesis Coupe 2.0T, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Electric WGT Control Actuator >> Components and Components Location >> Components

Components and Components Location: Components

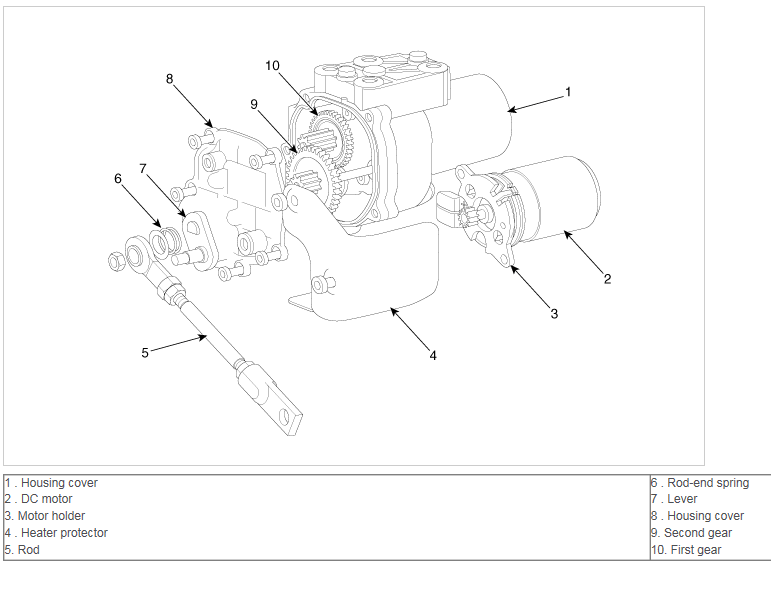

Fig 1: Identifying Electric WGT Control Actuator Components Location

G00545439

Courtesy of HYUNDAI MOTOR CO.
