Home >> Hyundai >> 2014 >> Santa Fe GLS, FWD >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> Start Stop Button >> Components and Components Location >> Component

Components and Components Location: Component

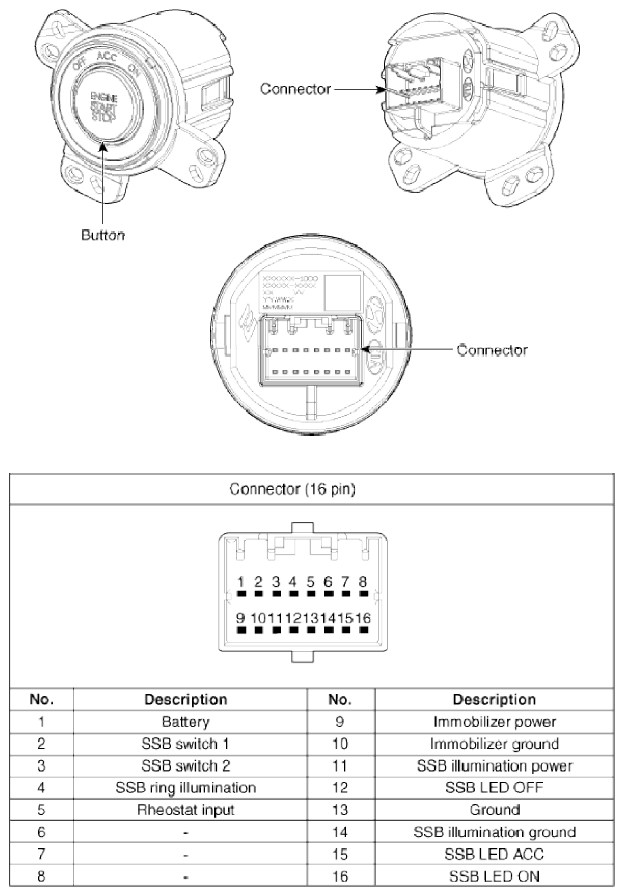

Fig 1: Start Stop Button Connector Terminal Identification

G09269062

Courtesy of HYUNDAI MOTOR AMERICA
