Components Location

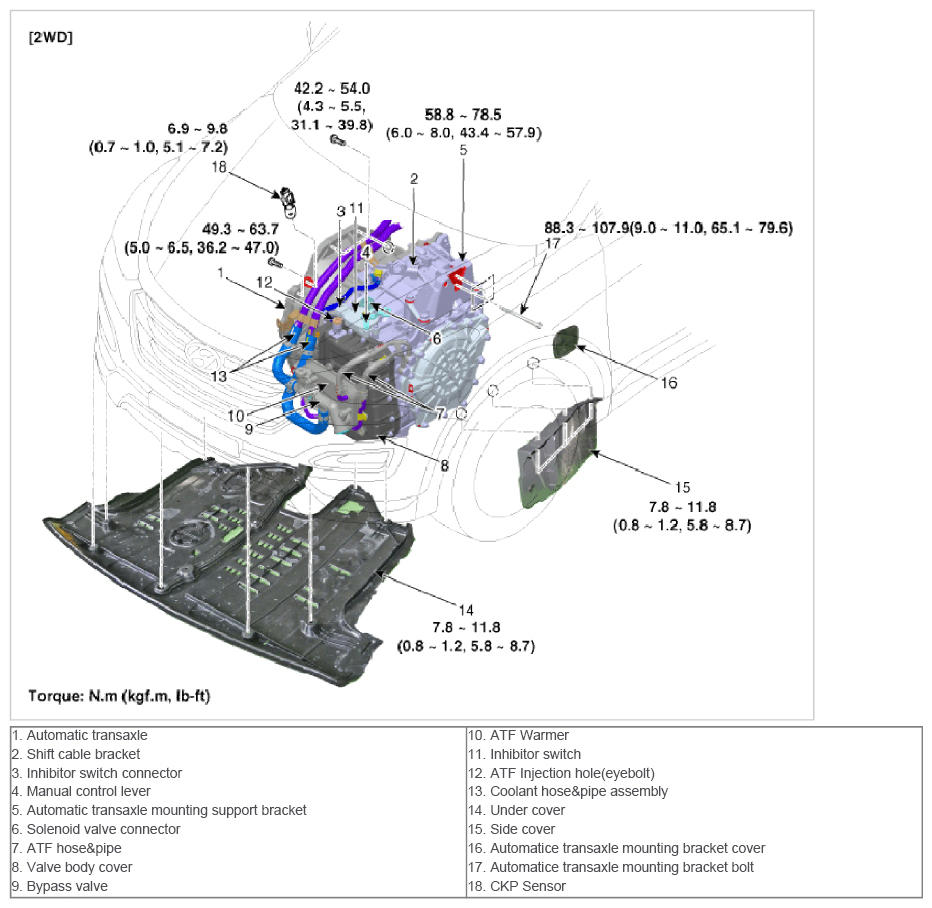

Fig 1: Automatic Transaxle Components Location With Torque Specifications (2WD)
G09267586Courtesy of HYUNDAI MOTOR AMERICA

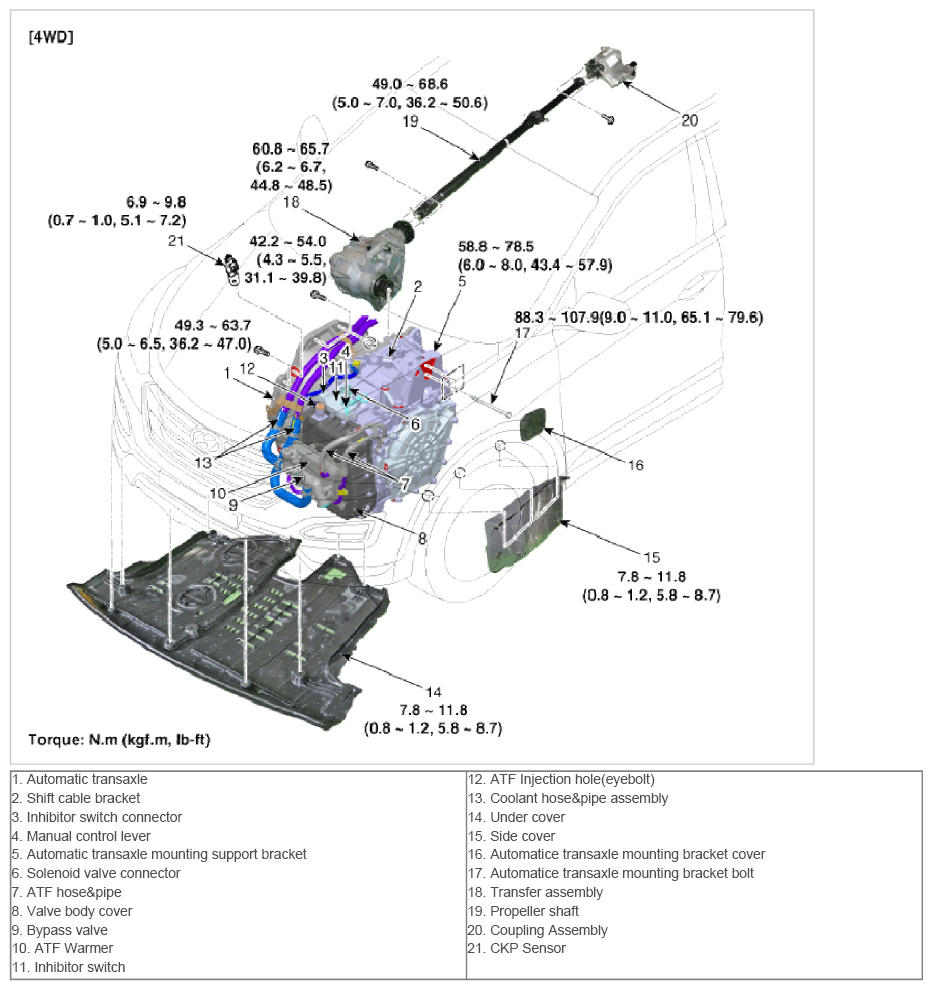

Fig 2: Automatic Transaxle Components Location With Torque Specifications (4WD)
G09267587Courtesy of HYUNDAI MOTOR AMERICA
