Door Locks
>>
Smart Key System
>>
Smart Key Unit
>>
Components and Components Location
>>
Components
>>
Connector Pin Information
Connector Pin Information

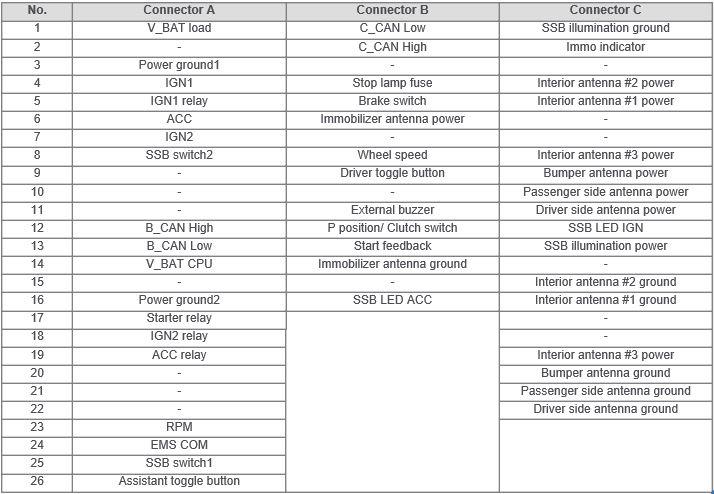

Fig 1: Smart Key Unit Connectors Terminal Identification
