Automatic Transmission

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the knob (A).

Fig 1: Removing Knob
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver, remove the floor console tray (A).

Fig 2: Identifying Floor Console Tray
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver, remove the floor console bezel (A).

Fig 3: Identifying Floor Console Bezel
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors (B).

Fig 4: Identifying Electrical Connectors
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver, remove the console upper cover (A).

Fig 5: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 6: Identifying Electrical Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the console armrest tray (A).

Fig 7: Identifying Console Armrest Tray
Courtesy of HYUNDAI MOTOR CO.
Remove the console tray mat (A).

Fig 8: Identifying Console Armrest Tray Mat
Courtesy of HYUNDAI MOTOR CO.
Remove the extension side cover (A).

Fig 9: Identifying Extension Side Cover
Courtesy of HYUNDAI MOTOR CO.

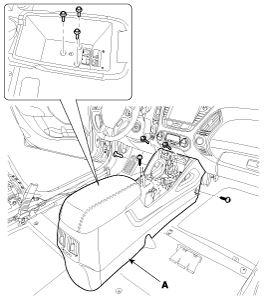

After loosening the mounting bolts and screws, then remove the floor console assembly (A).

Fig 10: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
