Circuit Diagram

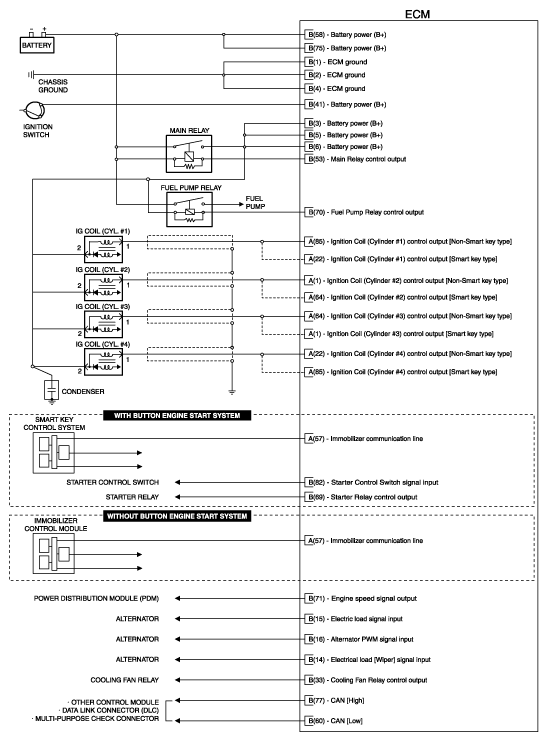

Fig 1: Engine Control Module - Circuit Diagram (1 Of 4)
G09802296Courtesy of HYUNDAI MOTOR AMERICA

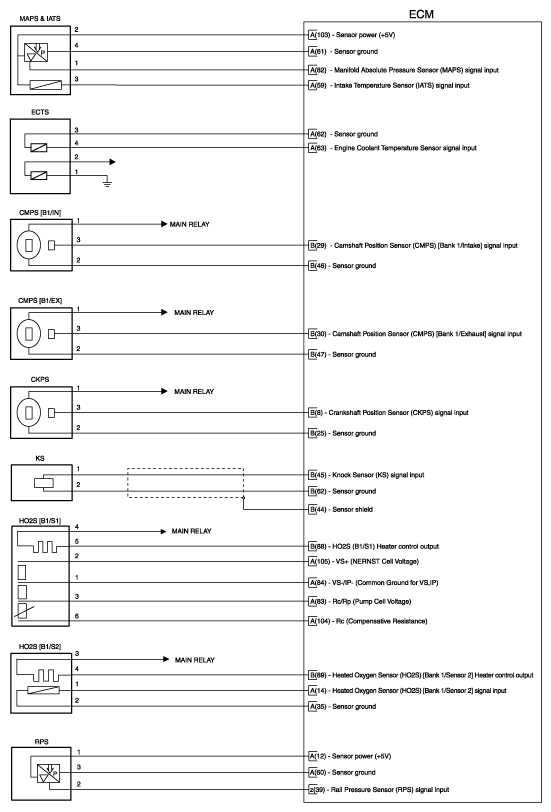

Fig 2: Engine Control Module - Circuit Diagram (2 Of 4)
G09802297Courtesy of HYUNDAI MOTOR AMERICA

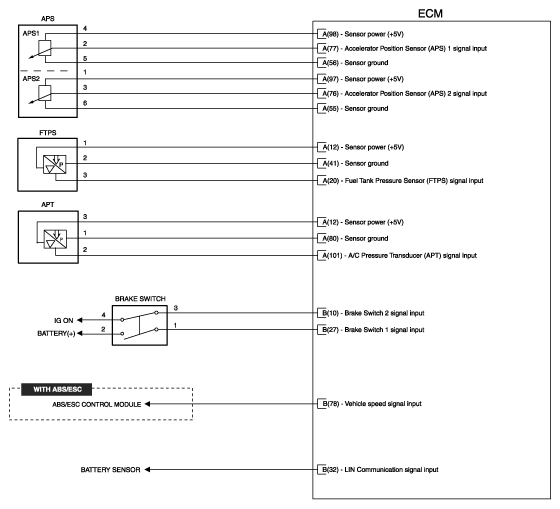

Fig 3: Engine Control Module - Circuit Diagram (3 Of 4)
G09802298Courtesy of HYUNDAI MOTOR AMERICA

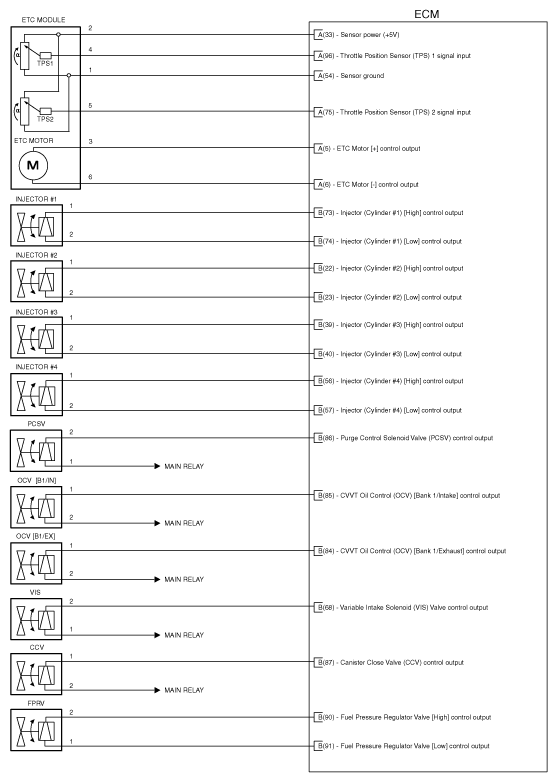

Fig 4: Engine Control Module - Circuit Diagram (4 Of 4)
G09802299Courtesy of HYUNDAI MOTOR AMERICA
