Home >> Hyundai >> 2014 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Buzzer

Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the air duct.
  3. Remove the buzzer (A) after disconnecting the connector.

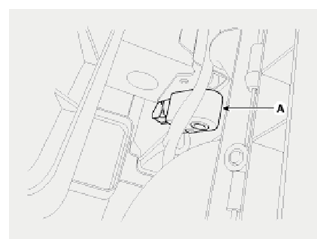

    Fig 1: Identifying Buzzer Connector
    G09134494Courtesy of HYUNDAI MOTOR AMERICA
