Home >> Hyundai >> 2014 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery >> Components and Components Location >> Components

Components and Components Location: Components

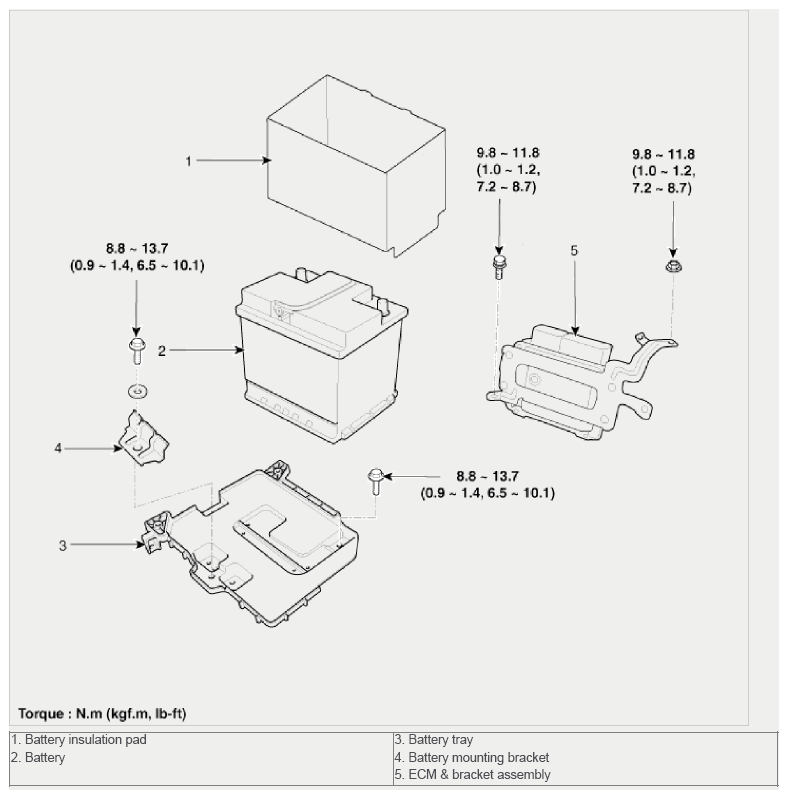

Fig 1: Battery And Related Replacement Components With Torque Specifications

G09150304

Courtesy of HYUNDAI MOTOR AMERICA
