Repair Procedures: Inspection

  1. Disconnect the battery negative terminal.
  2. Remove the fuse box cover.
  3. Remove the starter relay (A).

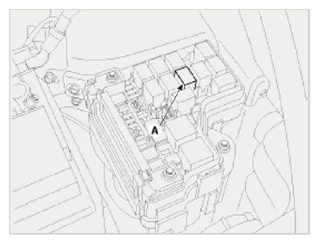

    Fig 1: Starter Relay
    G09150344Courtesy of HYUNDAI MOTOR AMERICA
  4. Using an ohmmeter, check that there is continuity between each terminal.
    Terminal Continuity
    30 - 87 NO
    85 - 86 YES
  5. Apply 12V to terminal 85 and ground to terminal 86.

    Check for continuity between terminals 30 and 87.

    Fig 2: Checking For Continuity Between Terminals 30 And 87
    G09150345Courtesy of HYUNDAI MOTOR AMERICA
  6. If there is no continuity, replace the starter relay.
  7. Install the starter relay.
  8. Install the fuse box cover.
