Components and Components Location: Components

1.6L Turbo

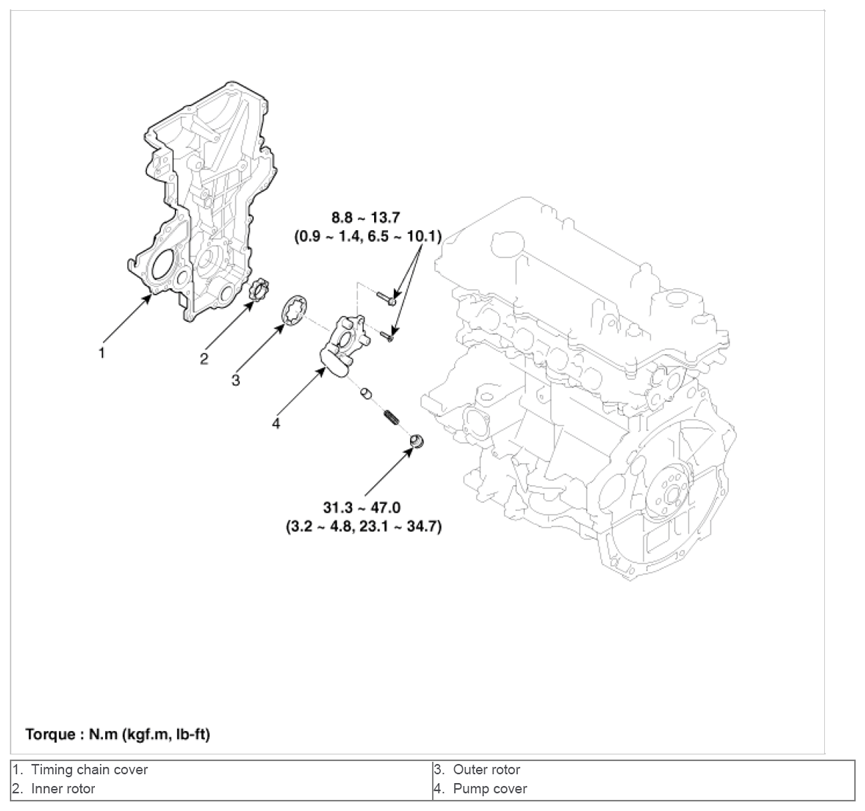

Fig 1: Timing Chain Cover Related Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1.6L Non-Turbo

Fig 2: Timing Chain Cover Related Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA
