Home >> Hyundai >> 2014 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

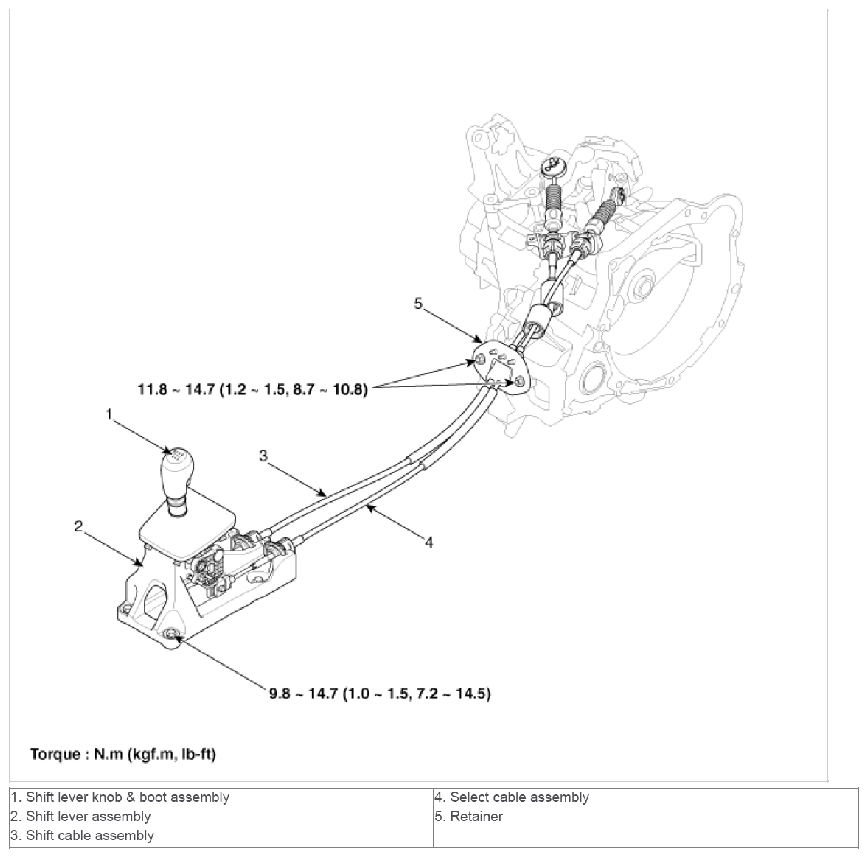

Fig 1: Shift Lever Components With Torque Specifications

G09150502

Courtesy of HYUNDAI MOTOR AMERICA
