Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

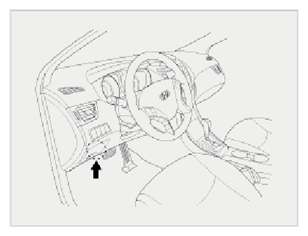

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

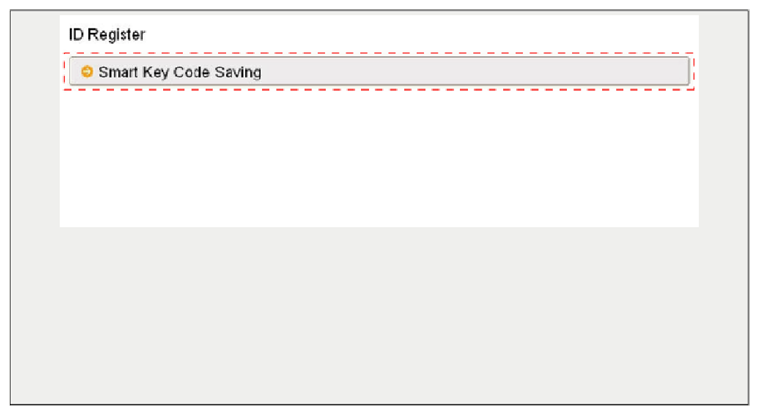

Fig 2: Display - Smart Key Code Saving Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be illustrated as below.

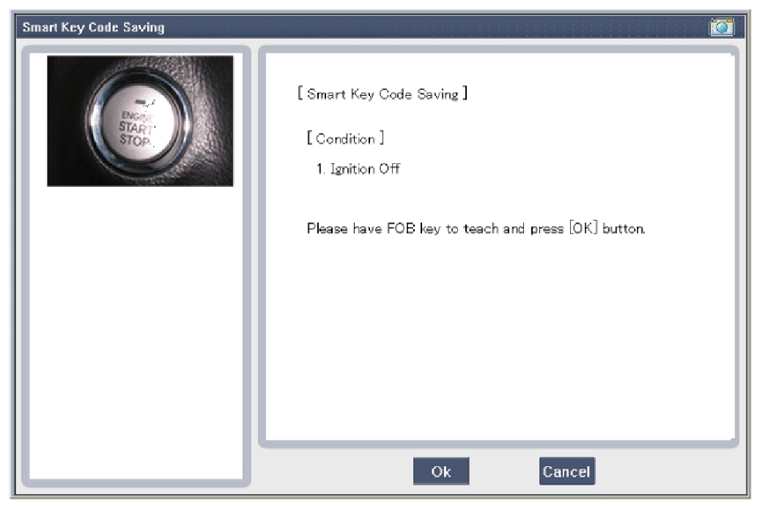

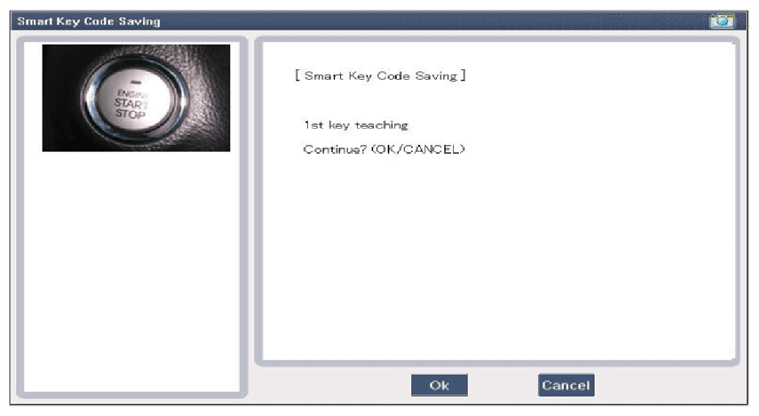

Fig 3: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
After pushing the SSB with the teaching key, press "OK" button.

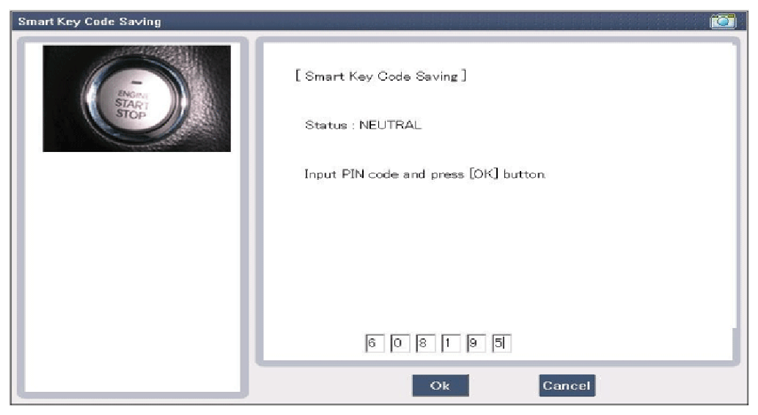

Input the "Pin code" for first key teaching.

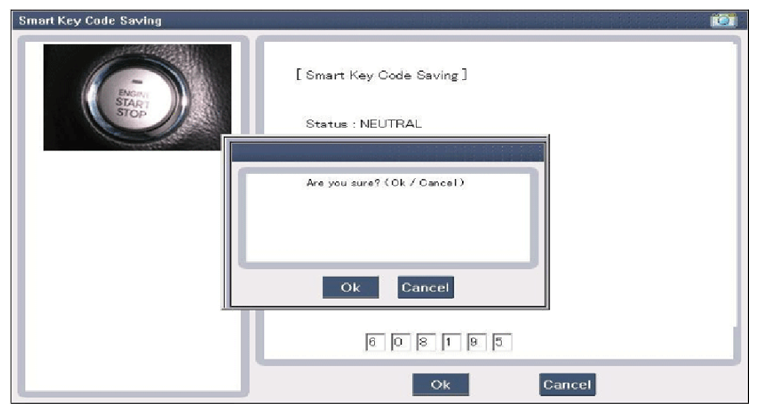

Fig 4: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Display - Smart Key Code Saving Testing Condition Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

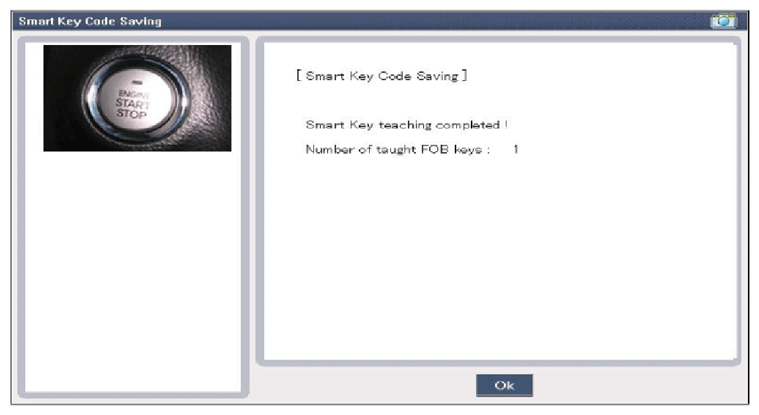

Fig 6: Display - Smart Key Code Saving Message Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

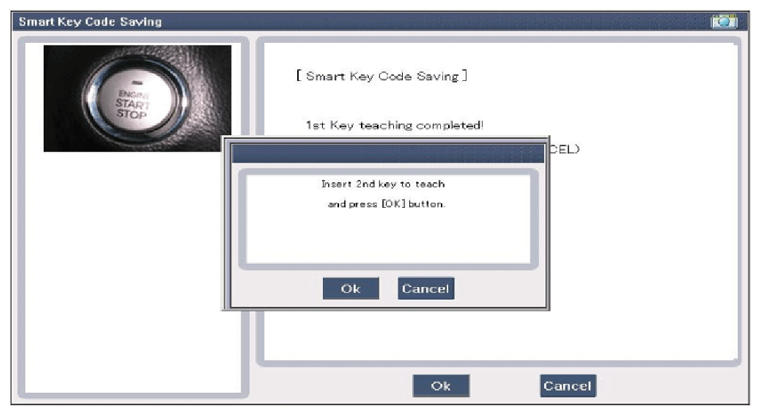

Fig 7: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Display - Smart Key Code Saving Confirmation Message Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Display - Smart Key Code Saving Confirmation Message Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

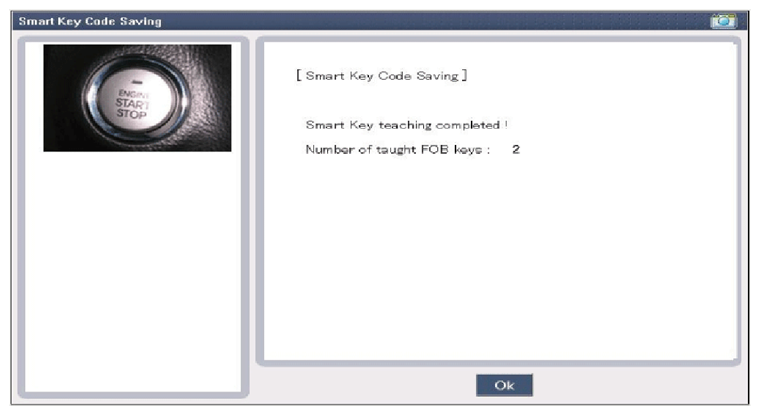

Fig 10: Display - Smart Key Code Saving Completion Screen
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be illustrated as below when key teaching process is completed.
