Repair Procedures: Removal

  1. Remove the engine cover.

    (Refer to "ENGINE COVER ")

  2. Remove the air cleaner assembly and air duct.

    (Refer to "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to "BATTERY ")

  4. Disconnect the inhibitor switch connect (A) and solenoid valve connector (B).

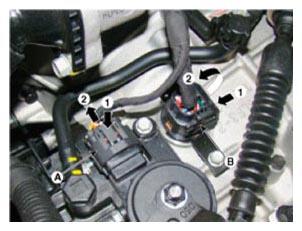

    Fig 1: Disconnecting Inhibitor Switch Connect And Solenoid Valve Connector
    G09150527Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the shift cable (C) after removing the nut (A) and the bolt (B).

    Tightening torque:

    1. 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
    2. 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)
      Fig 2: Identifying Shift Cable, Nut And Bolt
      G09150528Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the ground line after removing the bolt (A).

    Tightening torque:

    1. 10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.1 ~ 10.1 lb-ft)
      Fig 3: Identifying Ground Line Bolt
      G09150529Courtesy of HYUNDAI MOTOR AMERICA
  7. Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).
    Fig 4: Identifying Automatic Transaxle Fluid Cooler Hose And Clamp
    G09150530Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the solenoid valve connector and inhibitor switch connector wiring mounting bracket (A).
    Fig 5: Identifying Solenoid Valve Connector And Inhibitor Switch Connector Wiring Mounting Bracket
    G09150531Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the cowl top cover or wiper motor.

    (Refer to "COWL TOP COVER ")

  10. Assemble the engine support fixture.

    (Refer to Special Service Tools - "Engine support fixture assembly drawing")

  11. Using the engine support fixture (A), hold the engine and transaxle assembly safely.
    Fig 6: Holding Engine And Transaxle Assembly Using Engine Support Fixture
    G09150532Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter motor mounting bolt (B-2ea).

    Tightening torque:

    (A, B) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

    Fig 7: Identifying Automatic Transaxle Upper And Starter Motor Mounting Bolts
    G09150533Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the inlet hose & pipe (A).

    Tightening torque:

    19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)

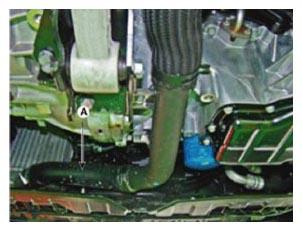

    Fig 8: Identifying Inlet Pipe
    G09150534Courtesy of HYUNDAI MOTOR AMERICA

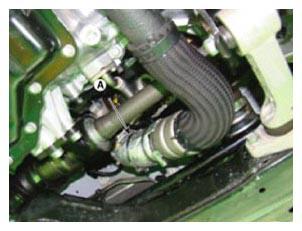

    Fig 9: Identifying Inlet Hose
    G09150535Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the brake vacuum pump.

    (Refer to "BRAKE BOOSTER ")

  15. Remove the automatic transaxle mounting bracket cover (A).
    Fig 10: Identifying Automatic Transaxle Mounting Bracket Cover
    G09150536Courtesy of HYUNDAI MOTOR AMERICA
  16. Remove the automatic transaxle mounting bracket bolt (A).

    Tightening torque:

    63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

    Fig 11: Identifying Automatic Transaxle Mounting Bracket Bolt

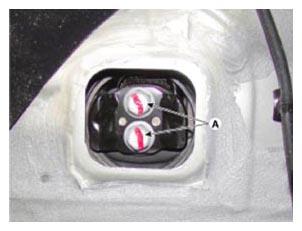

    G09150537Courtesy of HYUNDAI MOTOR AMERICA
  17. Remove the automatic transaxle mounting support bracket (A).

    Tightening torque:

    58.8 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

    Fig 12: Identifying Automatic Transaxle Mounting Support Bracket
    G09150538Courtesy of HYUNDAI MOTOR AMERICA
  18. Remove the under cover (A).

    Tightening torque:

    6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

    Fig 13: Identifying Under Cover
    G09150539Courtesy of HYUNDAI MOTOR AMERICA
  19. Remove the roll rod bracket (C) after removing bolt (A, B).

    Tightening torque:

    1. 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
    2. 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.1 lb-ft)
      Fig 14: Identifying Roll Rod Bracket And Bolt
      G09150540Courtesy of HYUNDAI MOTOR AMERICA
  20. Remove the drive shaft cover (A).
    Fig 15: Identifying Drive Shaft Cover
    G09150541Courtesy of HYUNDAI MOTOR AMERICA
  21. Remove the dust cover (A).
    Fig 16: Identifying Dust Cover
    G09150542Courtesy of HYUNDAI MOTOR AMERICA
  22. Remove the torque converter mounting bolt (A-4ea) with rotating the crankshaft.

    Tightening torque:

    45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

    Fig 17: Identifying Torque Converter Mounting Bolt
    G09150543Courtesy of HYUNDAI MOTOR AMERICA
  23. Remove the automatic transaxle with a jack after removing the mounting bolt (A-4ea, B-2ea).

    Tightening torque:

    1. 42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)
    2. 42.2 ~ 54.0 N.m (4.3 ~5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
      Fig 18: Identifying Automatic Transaxle Mounting Bolt
      G09150544Courtesy of HYUNDAI MOTOR AMERICA
