Repair Procedures: Adjustment

Adjusting method for T/M control cable

  1. Set room side shift lever and T/M side manual control lever to "N" position.
  2. Connect room side shift lever and shift cable.
  3. Push cable to "F" direction illustrated to eliminate FREE PLAY.
  4. Tighten adjusting nut (A).

    Tightening torque:

    7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

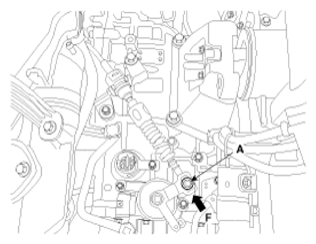

    Fig 1: Locating Adjusting Nut
    G09150682Courtesy of HYUNDAI MOTOR AMERICA
  5. After adjusting according check to be sure that this part operates surely at each range of T/M side corresponding to each position of shift lever.
