Home >> Hyundai >> 2015 >> Accent GLS, Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Alternator >> Components and Components Location >> Components

Components and Components Location: Components

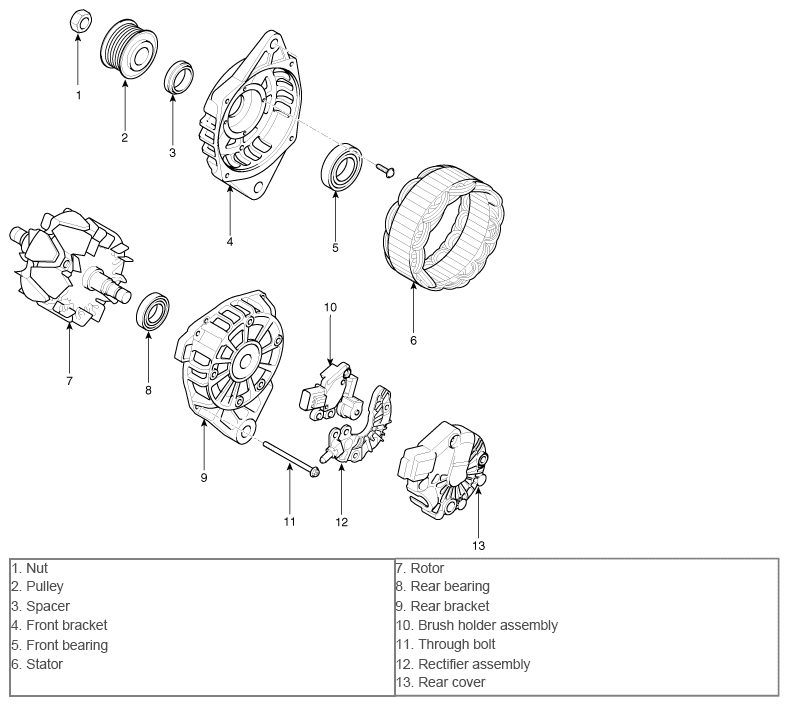

Fig 1: Alternator Components
G10362283Courtesy of HYUNDAI MOTOR AMERICA
