Home >> Hyundai >> 2015 >> Accent GLS, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pump >> Components and Components Location >> Components

Components and Components Location: Components

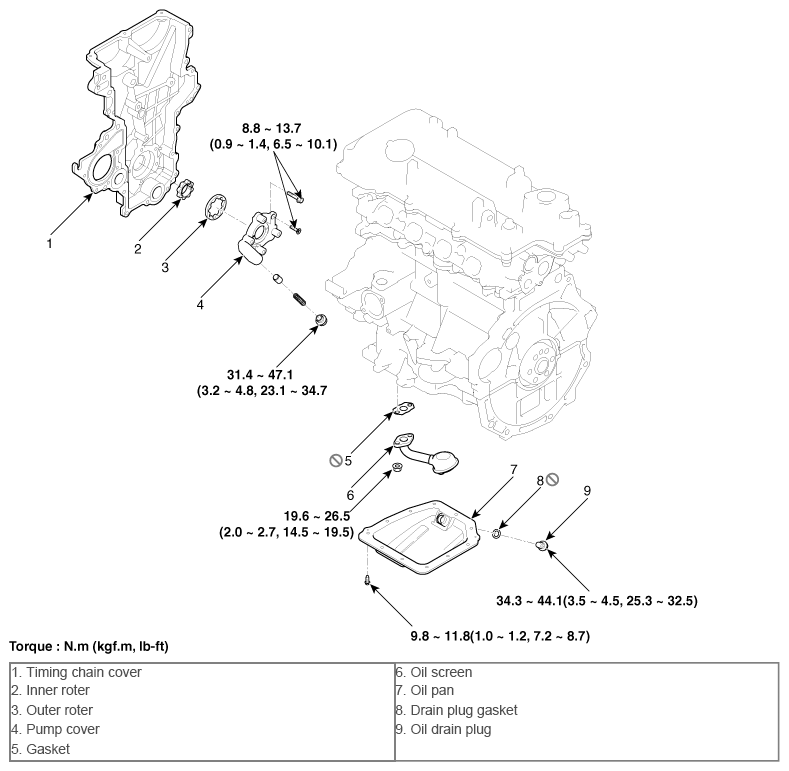

Fig 1: Oil Pump Component Locations With Torque Specifications

G10362184

Courtesy of HYUNDAI MOTOR AMERICA
