Santa Fe Sport Base, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Control System
>>
Automatic Transaxle Control System
>>
Components and Components Location
>>
Component Location
Component Location

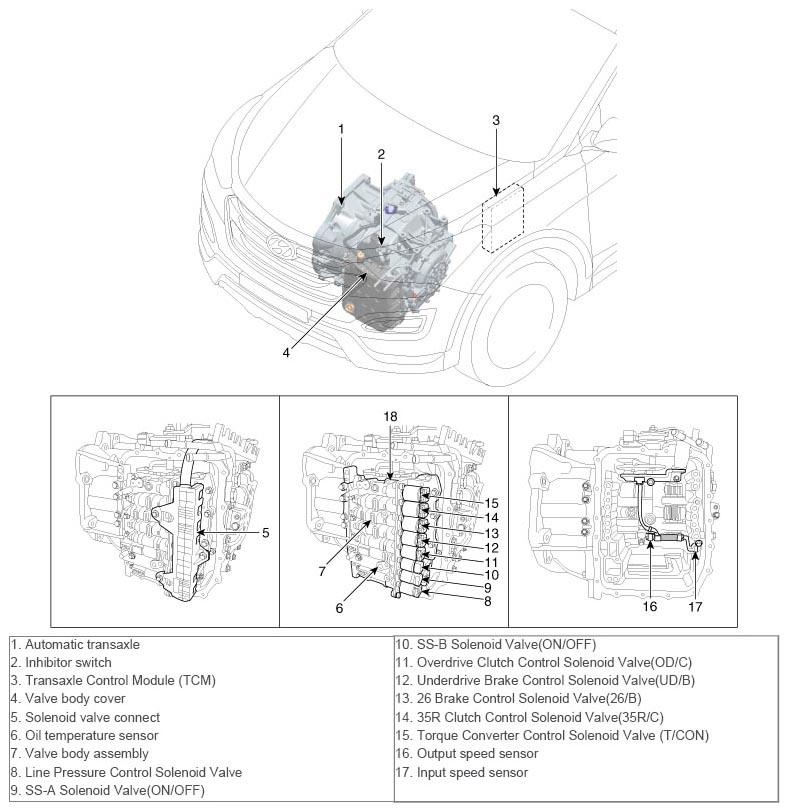

Fig 1: Automatic Transaxle System Components Location
Courtesy of HYUNDAI MOTOR AMERICA

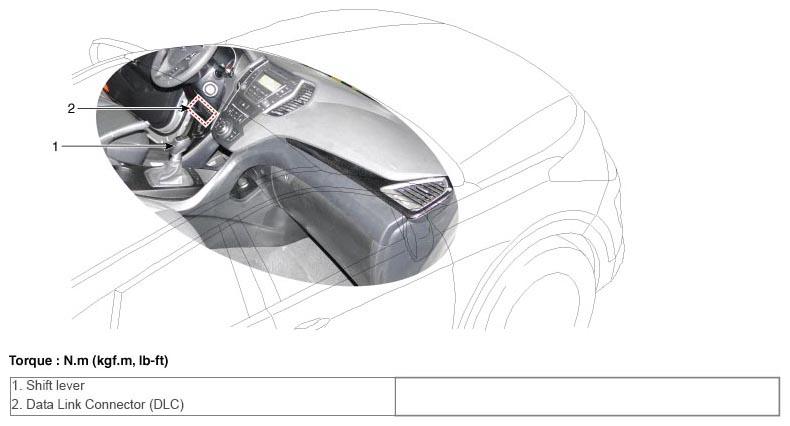

Fig 2: Shift Lever And Data Link Connector Location
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
