Automatic Transaxle

CAUTION:

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the knob (A).

Fig 1: Identifying Knob
Courtesy of HYUNDAI MOTOR AMERICA

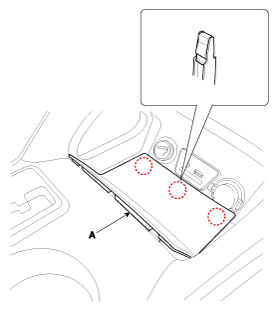

Using a screwdriver, remove the floor console tray (A).

Fig 2: Identifying Floor Console Tray
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver, remove the floor console bezel (A).

Fig 3: Identifying Floor Console Bezel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

Fig 4: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver, remove the console upper cover (A).

Fig 5: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

Fig 6: Identifying Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console armrest tray (A).

Fig 7: Identifying Console Armrest Tray
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console tray mat (A).

Fig 8: Identifying Console Tray Mat
Courtesy of HYUNDAI MOTOR AMERICA
Remove the extension side cover (A).

Fig 9: Identifying Extension Side Cover
Courtesy of HYUNDAI MOTOR AMERICA

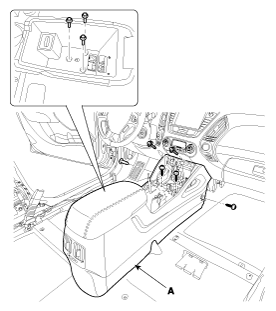

After loosening the mounting bolts and screws, then remove the floor console assembly (A).

Fig 10: Loosening Floor Console Assembly Mounting Bolts And Screws
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
