Rear Power Window Switch

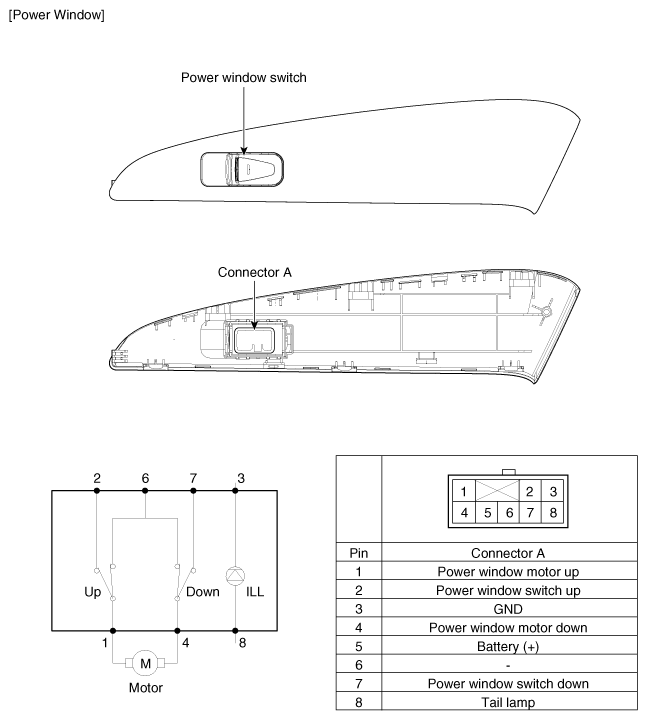

Fig 1: Rear Power Window Switch Circuit Diagram And Connector Terminal Identification (W/O Seat Heater)
G10613246Courtesy of HYUNDAI MOTOR AMERICA

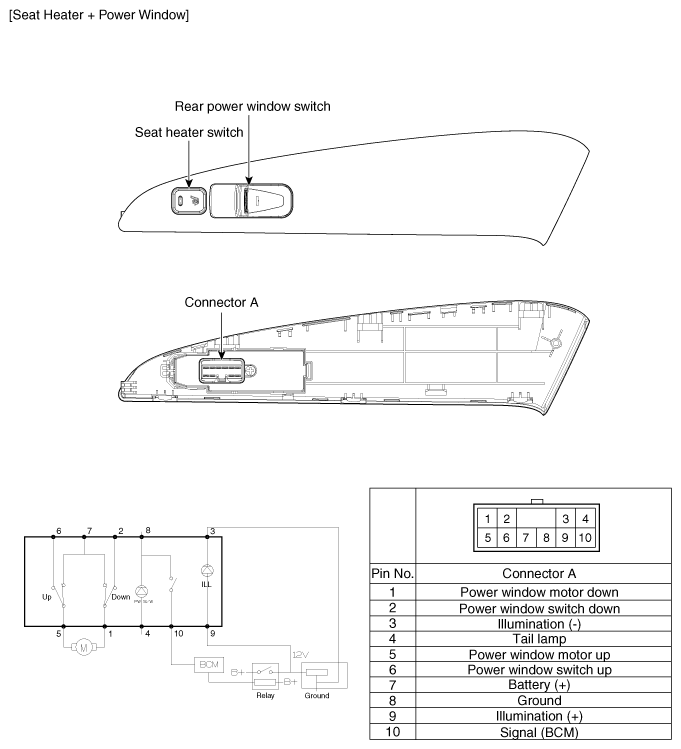

Fig 2: Rear Power Window Switch Circuit Diagram And Connector Terminal Identification (W/ Seat Heater)
G10613247Courtesy of HYUNDAI MOTOR AMERICA
