Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver's door.

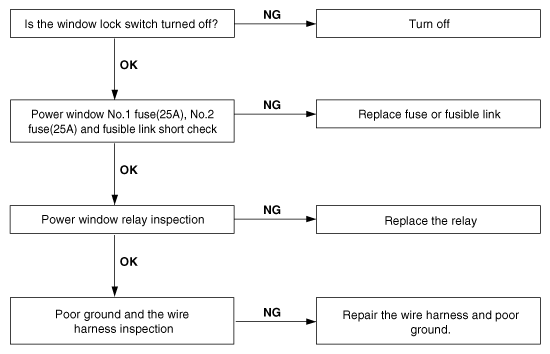

    Fig 1: Door Main Switch Troubleshooting Chart
    G10613257Courtesy of HYUNDAI MOTOR AMERICA
  2. Driver's side window does not operate.

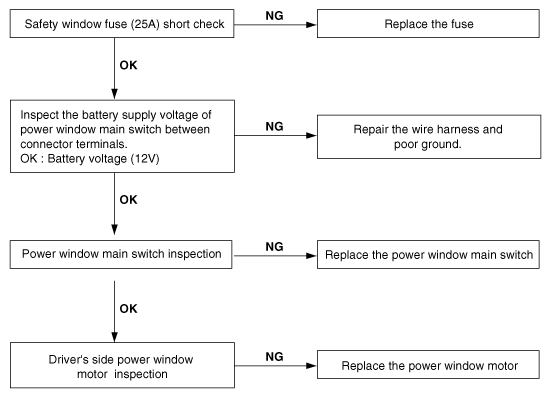

    Fig 2: Door Main Switch Troubleshooting Chart (Driver Side Window)
    G10613258Courtesy of HYUNDAI MOTOR AMERICA
  3. Passenger's side window does not operate.

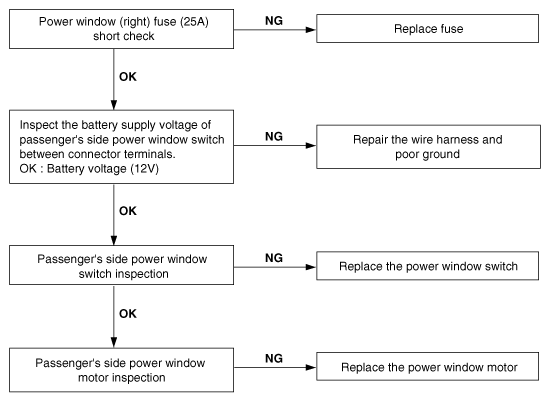

Fig 3: Door Main Switch Troubleshooting Chart (Passenger Side Window)
G10613259Courtesy of HYUNDAI MOTOR AMERICA
