Components Location

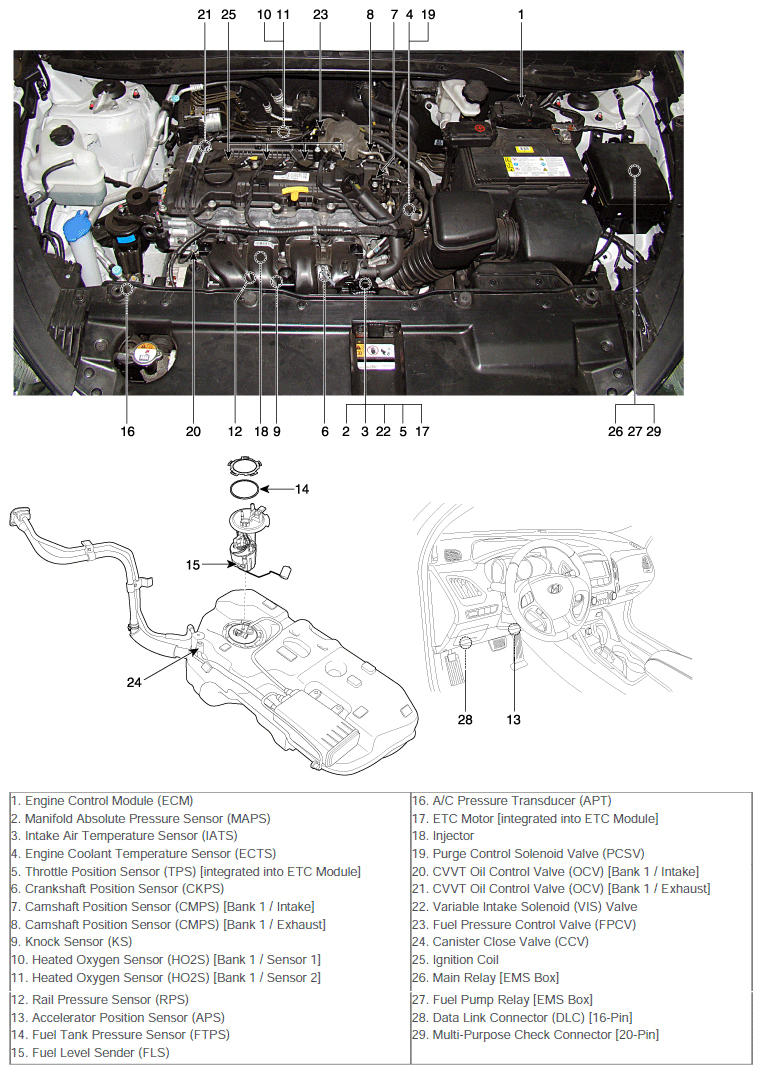

Fig 1: Identifying Engine Control System Components (1 Of 4)
G10611436Courtesy of HYUNDAI MOTOR AMERICA

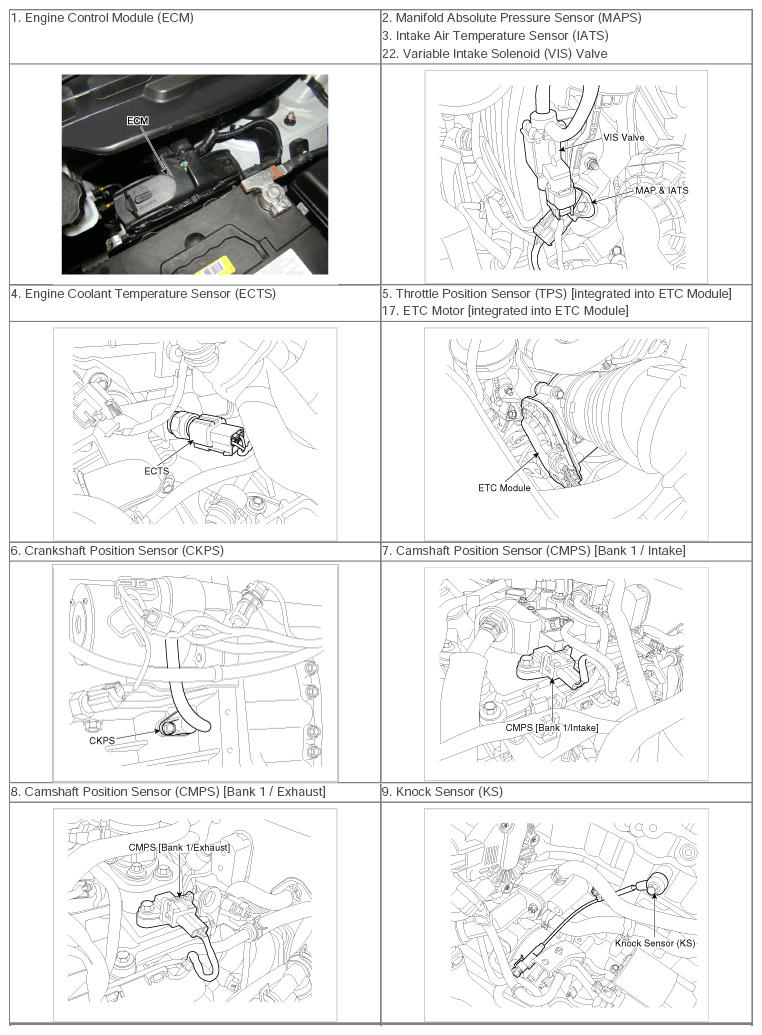

Fig 2: Identifying Engine Control System Components (2 Of 4)
G10611437Courtesy of HYUNDAI MOTOR AMERICA

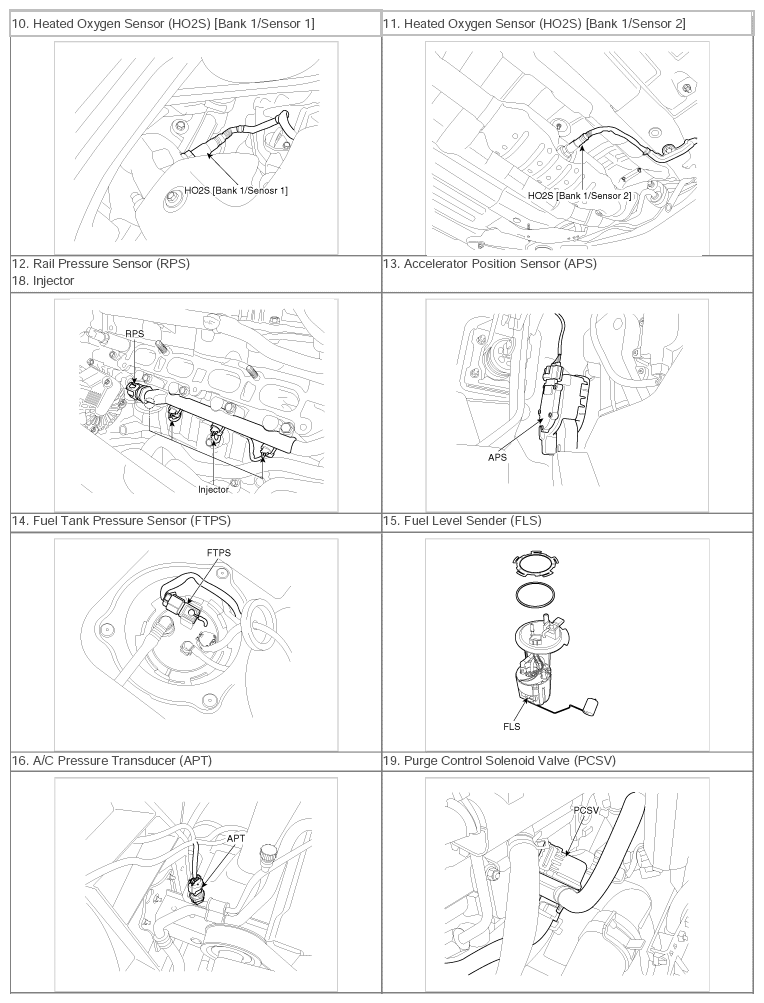

Fig 3: Identifying Engine Control System Components (3 Of 4)
G10611438Courtesy of HYUNDAI MOTOR AMERICA

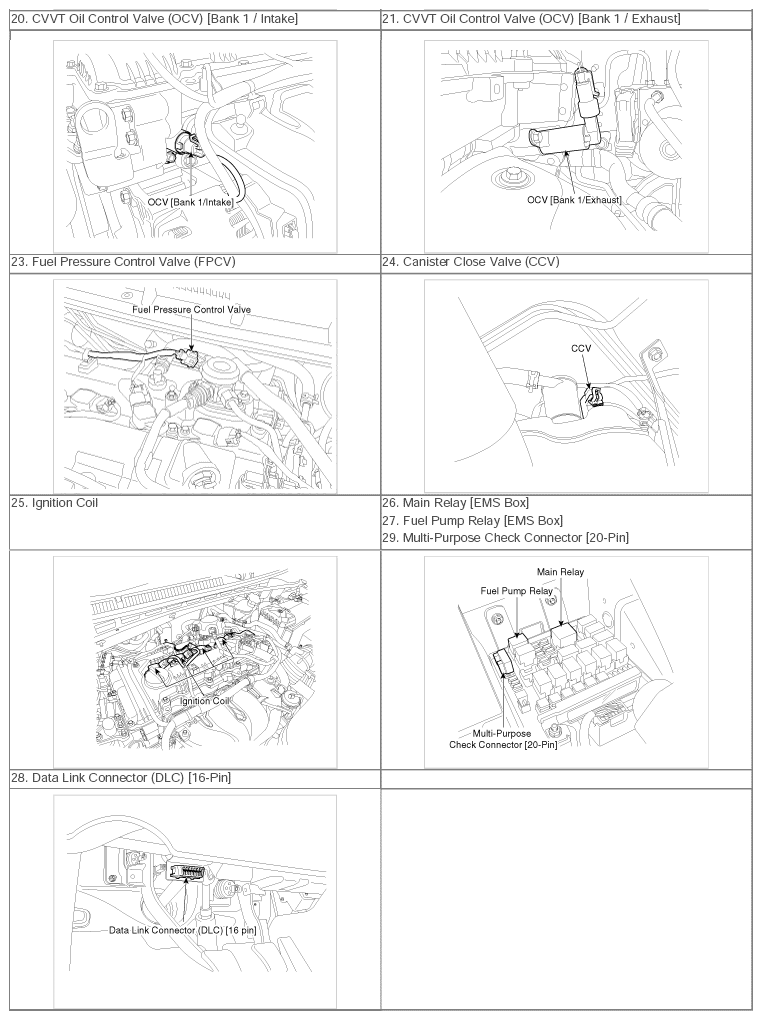

Fig 4: Identifying Engine Control System Components (4 Of 4)
G10611439Courtesy of HYUNDAI MOTOR AMERICA
