Home >> Hyundai >> 2015 >> Veloster Turbo, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L T-GDI >> Camshaft Position Sensor (CMPS) >> Troubleshooting >> WaveForm

Camshaft Position Sensor (CMPS): Troubleshooting: WaveForm

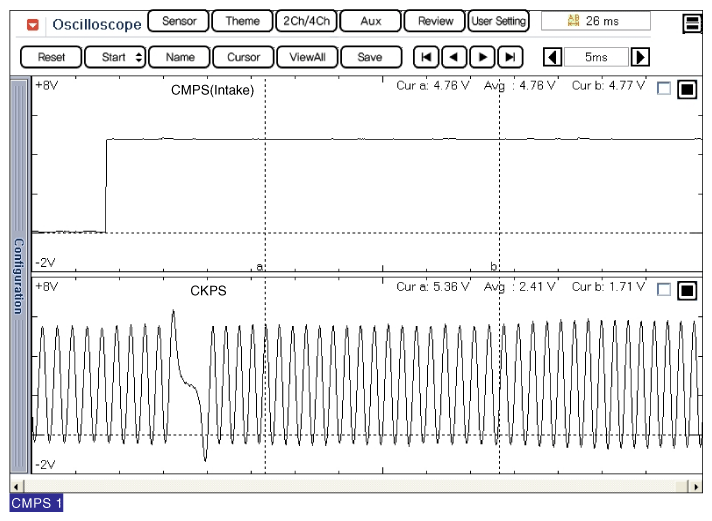

Fig 1: Signal Waveform Of Crankshaft Position Sensor And Camshaft Position Sensor (Intake) - Screen Display
G10604559Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Signal Waveform Of Crankshaft Position Sensor (Exhaust) And Camshaft Position Sensor (Intake) - Screen Display
G10604560Courtesy of HYUNDAI MOTOR AMERICA
