Components and Components Location: Components

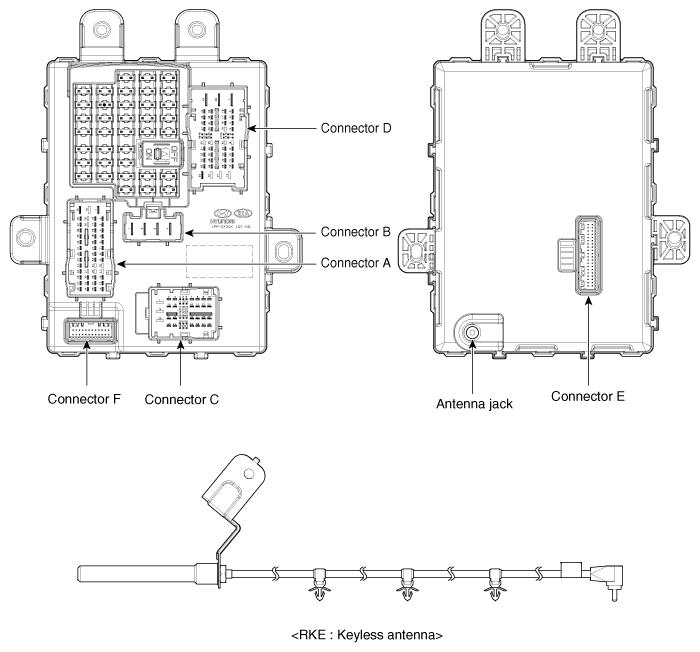

Fig 1: Body Control Module Components

G10368856

Courtesy of HYUNDAI MOTOR AMERICA

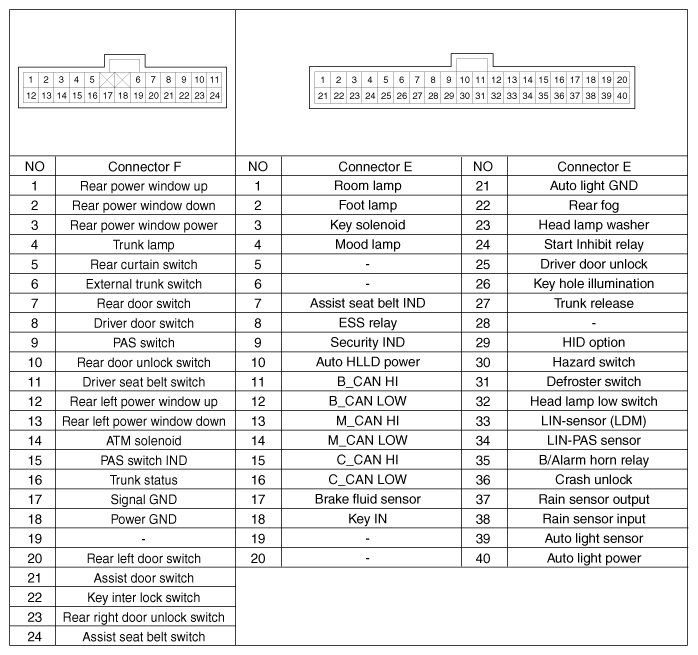

Fig 2: Body Control Module Terminals

G10368857

Courtesy of HYUNDAI MOTOR AMERICA
