Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery >> Components and Components Location >> Components

Components and Components Location: Components

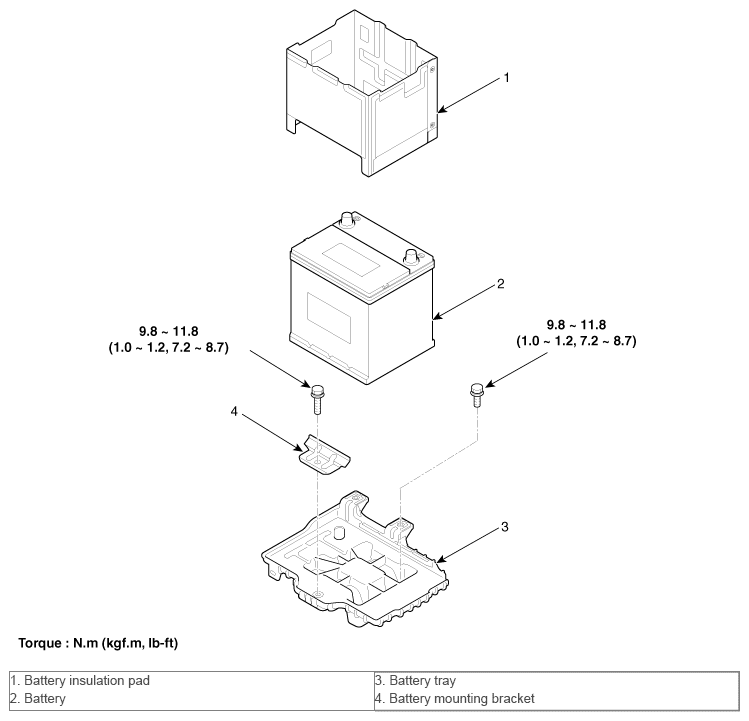

Fig 1: Battery Components With Torque Specifications
G10367234Courtesy of HYUNDAI MOTOR AMERICA
