Components Location

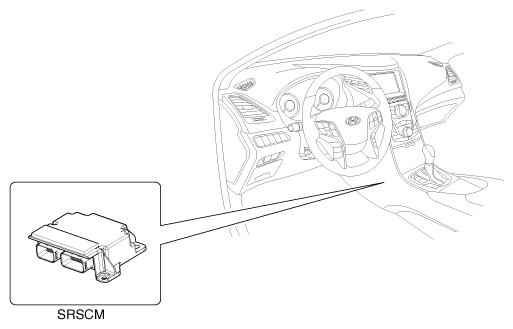

Supplemental Restraint System Control Module (SRSCM)

Fig 1: Supplemental Restraint System Control Module
G10368029Courtesy of HYUNDAI MOTOR AMERICA

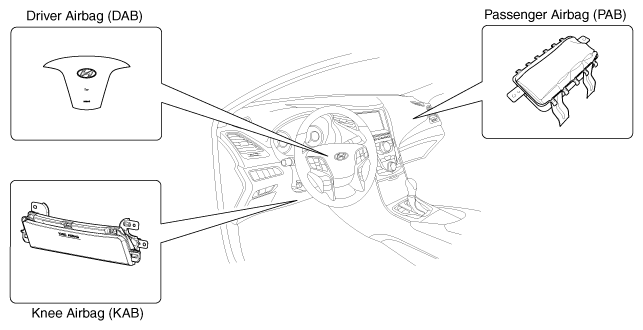

Driver Airbag (DAB)/Passenger Airbag (PAB)/Knee Airbag (KAB)

Fig 2: Driver, Passenger And Knee Airbag
G10368030Courtesy of HYUNDAI MOTOR AMERICA

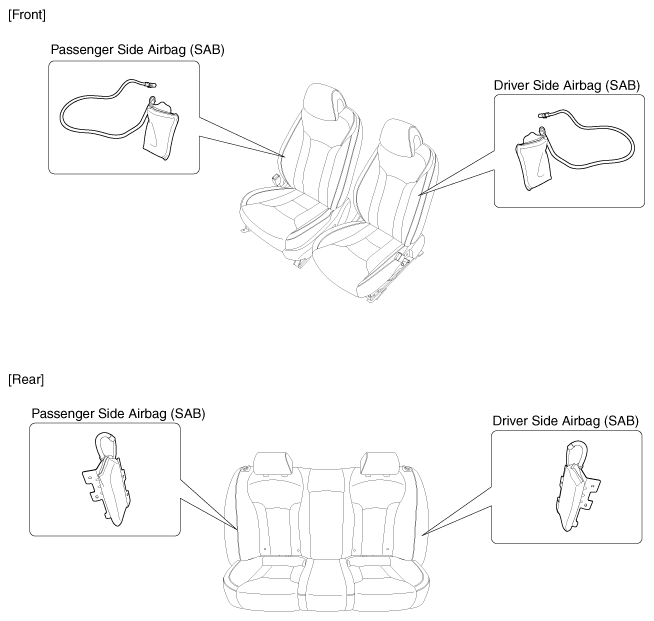

Side Airbag (SAB)

Fig 3: Front Passenger Side Airbag
G10368031Courtesy of HYUNDAI MOTOR AMERICA

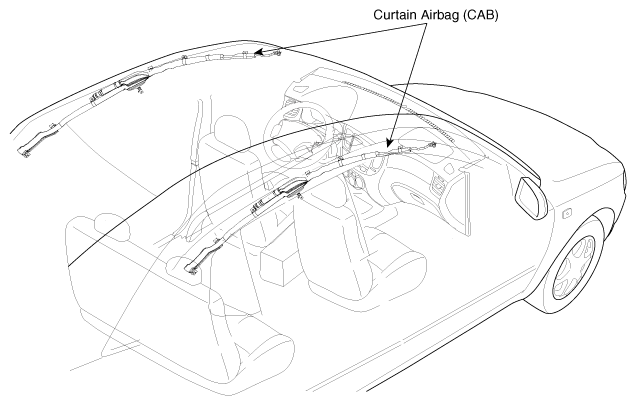

Curtain Airbag (CAB)

Fig 4: Curtain Airbag
G10368032Courtesy of HYUNDAI MOTOR AMERICA

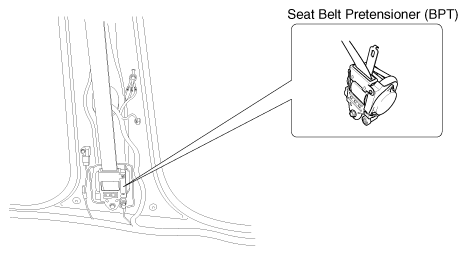

Seat Belt Pretensioner (BPT)

Fig 5: Seat Belt Pretensioner
G10368033Courtesy of HYUNDAI MOTOR AMERICA

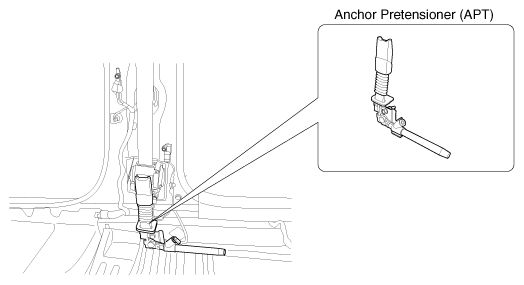

Anchor Pretensioner (APT)

Fig 6: Anchor Pretensioner
G10368034Courtesy of HYUNDAI MOTOR AMERICA

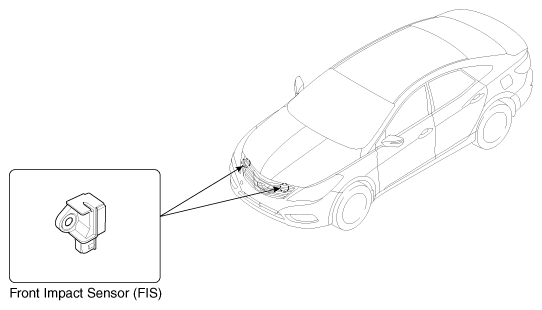

Front Impact Sensor (FIS)

Fig 7: Front Impact Sensor
G10368035Courtesy of HYUNDAI MOTOR AMERICA

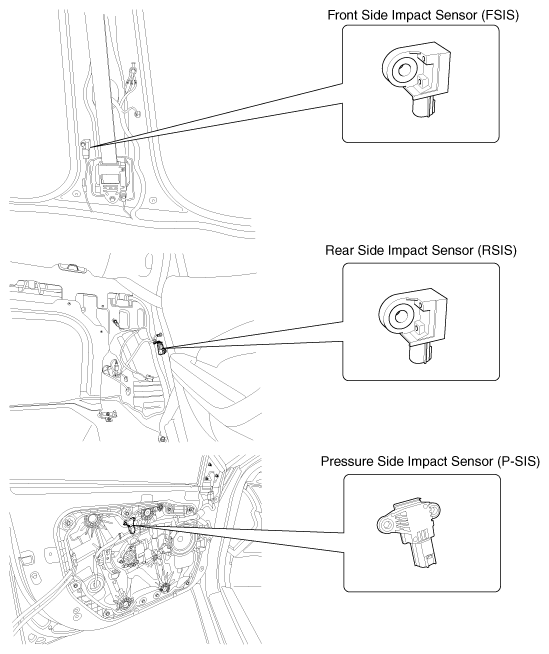

Side Impact Sensor (SIS)/Pressure Side Impact Sensor (P-SIS)

Fig 8: Side Impact Sensors
G10368036Courtesy of HYUNDAI MOTOR AMERICA
