Repair Procedures: Inspection

The power SJB can be diagnosed by using the GDS. The SJB communicates with the GDS which then displays inputs and outputs along with codes.
It will be able to diagnose defects of power window with GDS quickly. GDS can operates actuator forcefully, Input/Output value monitoring and self diagnosis.
To diagnose the SJB function, select the vehicle model, BCM and SJB.

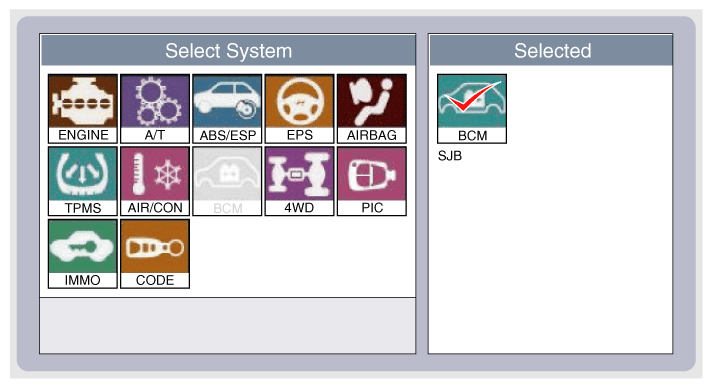

Fig 1: Display - Select BCM And SJB Screen
Courtesy of HYUNDAI MOTOR AMERICA
To consult the present Input/Output value of SJB, "Current DATA". It provides information of SJB Input/Output conditions.

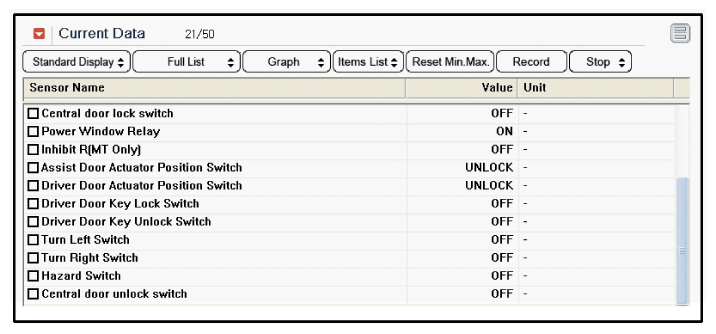

Fig 2: Display - SJB Current Data Screen
Courtesy of HYUNDAI MOTOR AMERICA
To perform functional test on SJB outputs, select "Actuation Test".

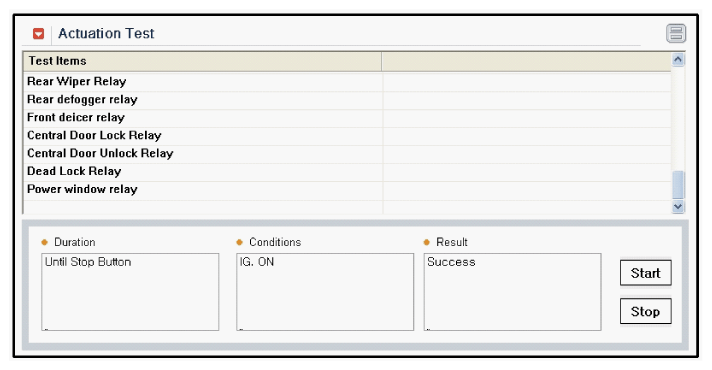

Fig 3: Display - SJB Actuation Test Screen
Courtesy of HYUNDAI MOTOR AMERICA
