Home >> Hyundai >> 2016 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Alternator >> Components and Components Location >> Components

Components and Components Location: Components

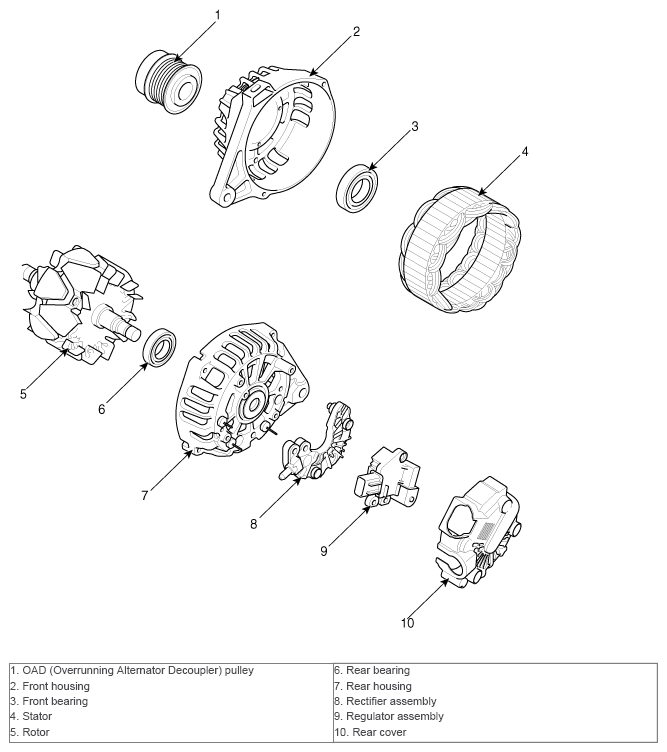

Fig 1: Exploded View Of Alternator
G10749696Courtesy of HYUNDAI MOTOR AMERICA
