Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

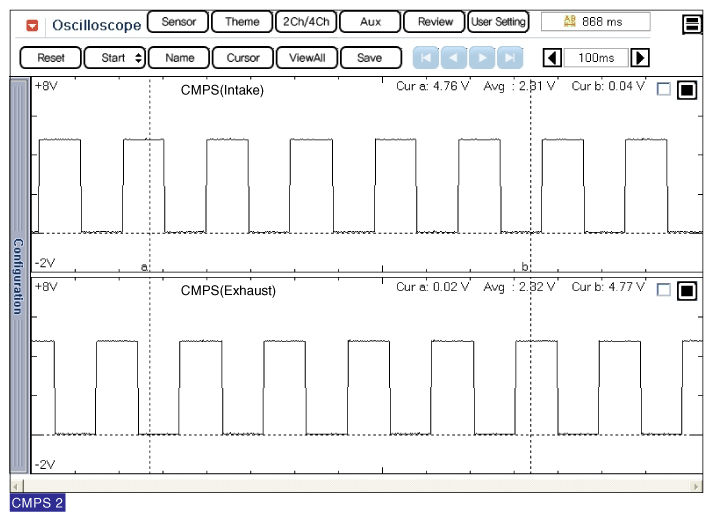

Fig 1: Screen Display - CMPS And CKPS (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

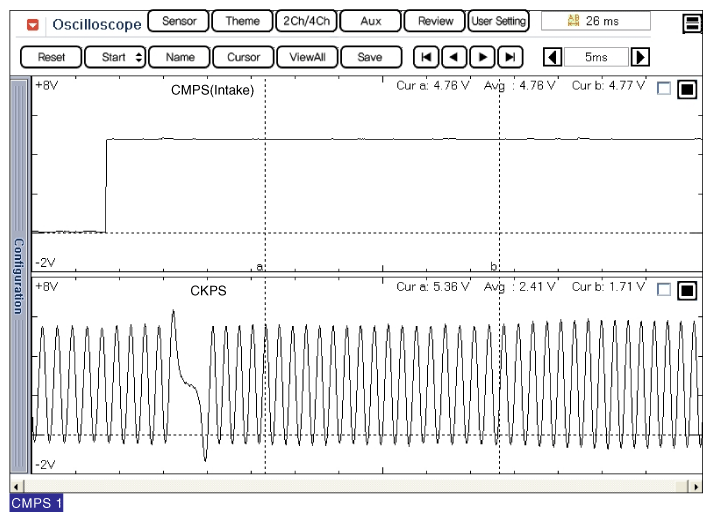

Fig 2: Screen Display - CMPS And CKPS (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
