Components and Components Location: Components

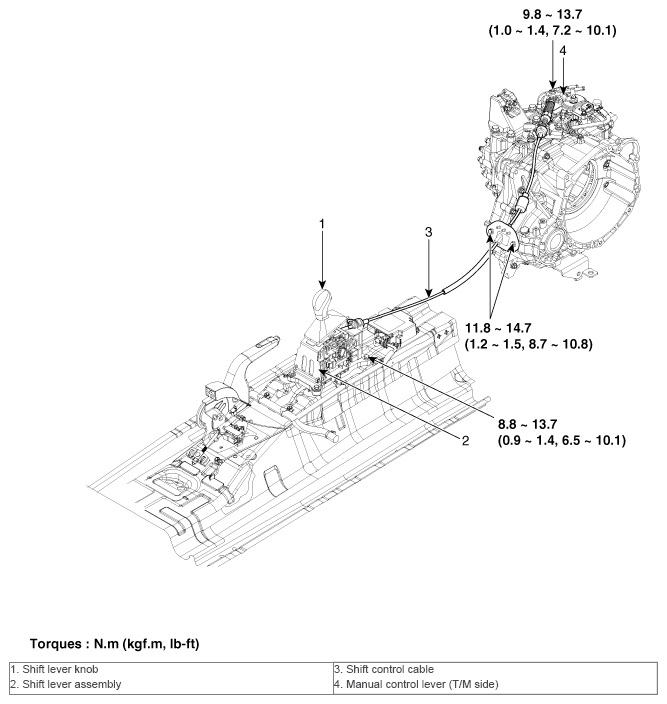

Fig 1: Shift Lever Knob And Shift Lever Assembly Components With Torque Specifications

G10750282

Courtesy of HYUNDAI MOTOR AMERICA
