Home >> Hyundai >> 2016 >> Elantra SE, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System >> Control Cable >> Components and Components Location >> Components

Components and Components Location: Components

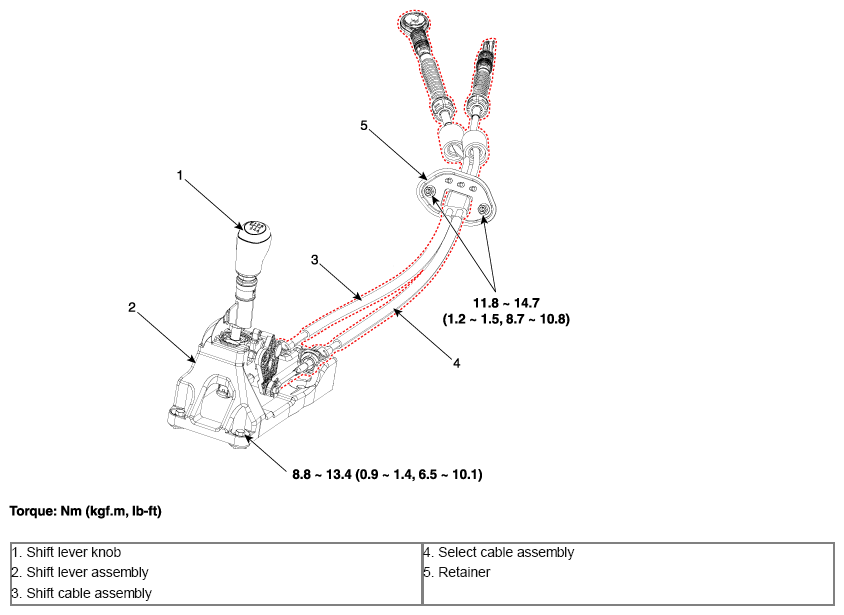

Fig 1: Control Cable Components With Torque Specifications

G10537913

Courtesy of HYUNDAI MOTOR AMERICA
