Components Location

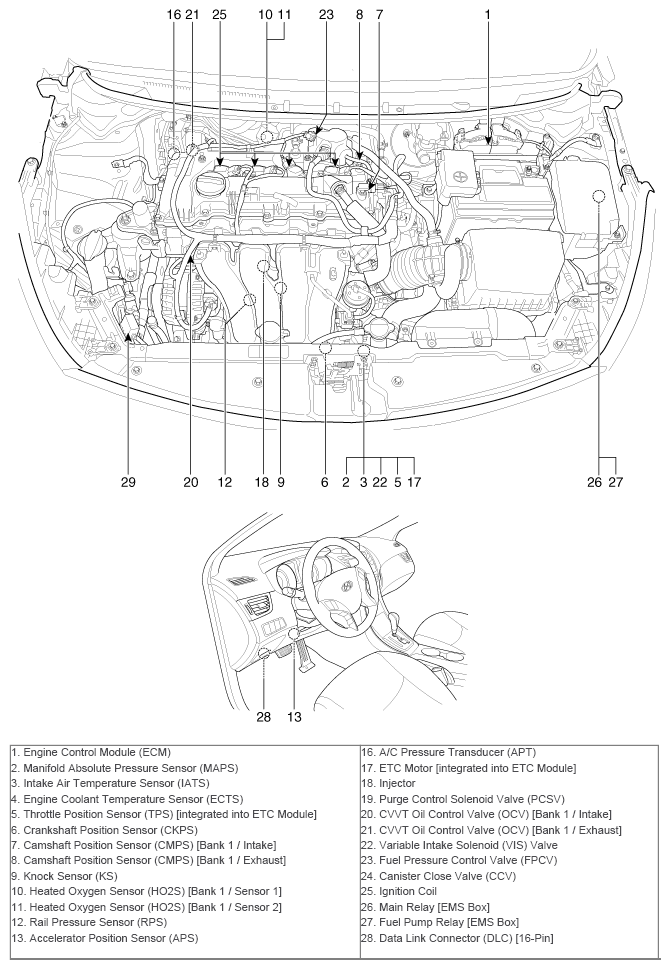

Fig 1: Engine Control System Components Location
G10749829Courtesy of HYUNDAI MOTOR AMERICA

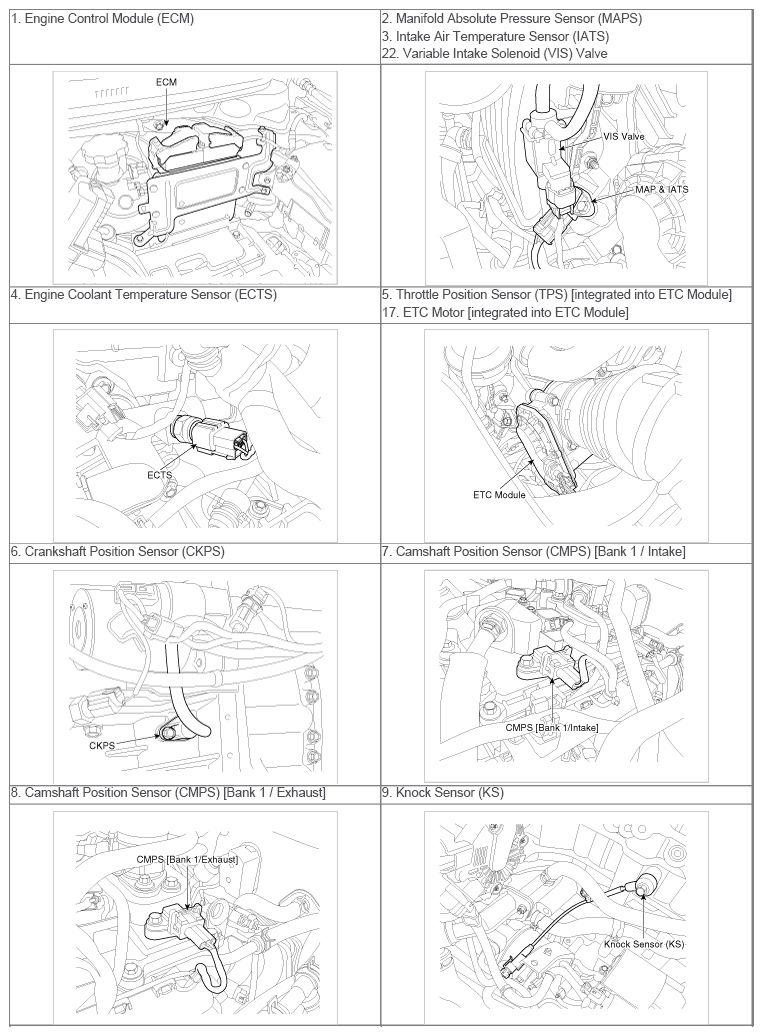

Fig 2: ECM, ECTS And Variable Intake Solenoid Valve Components Location
G10749830Courtesy of HYUNDAI MOTOR AMERICA

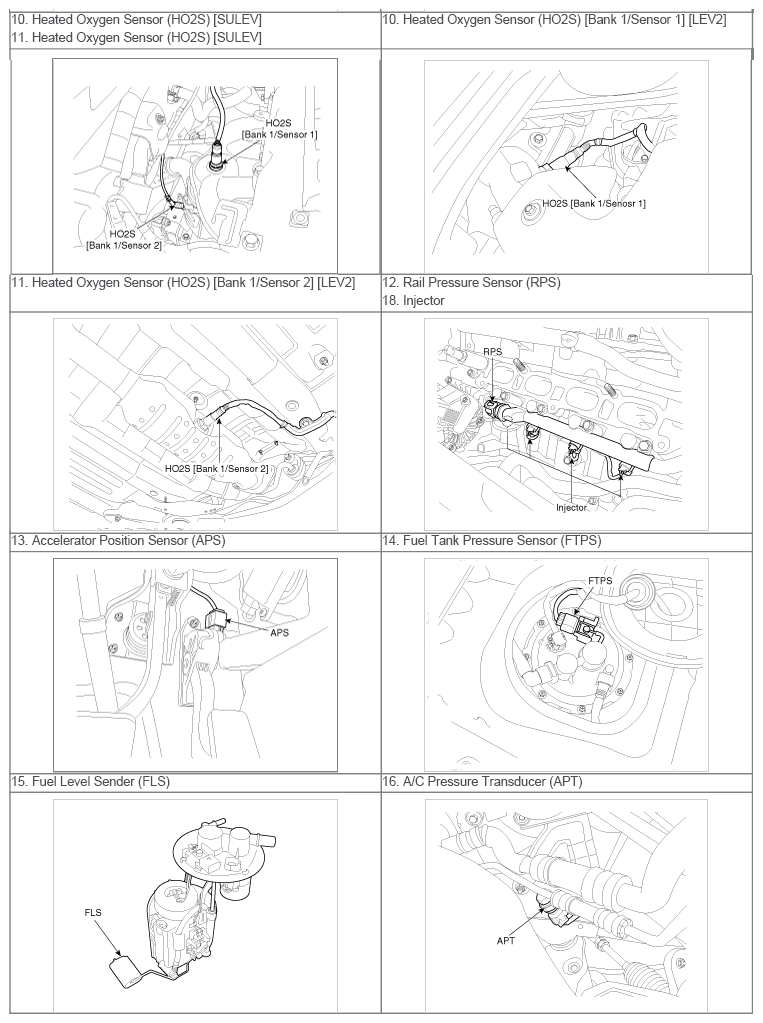

Fig 3: HO2S, RPS And Injector Components Location
G10749831Courtesy of HYUNDAI MOTOR AMERICA

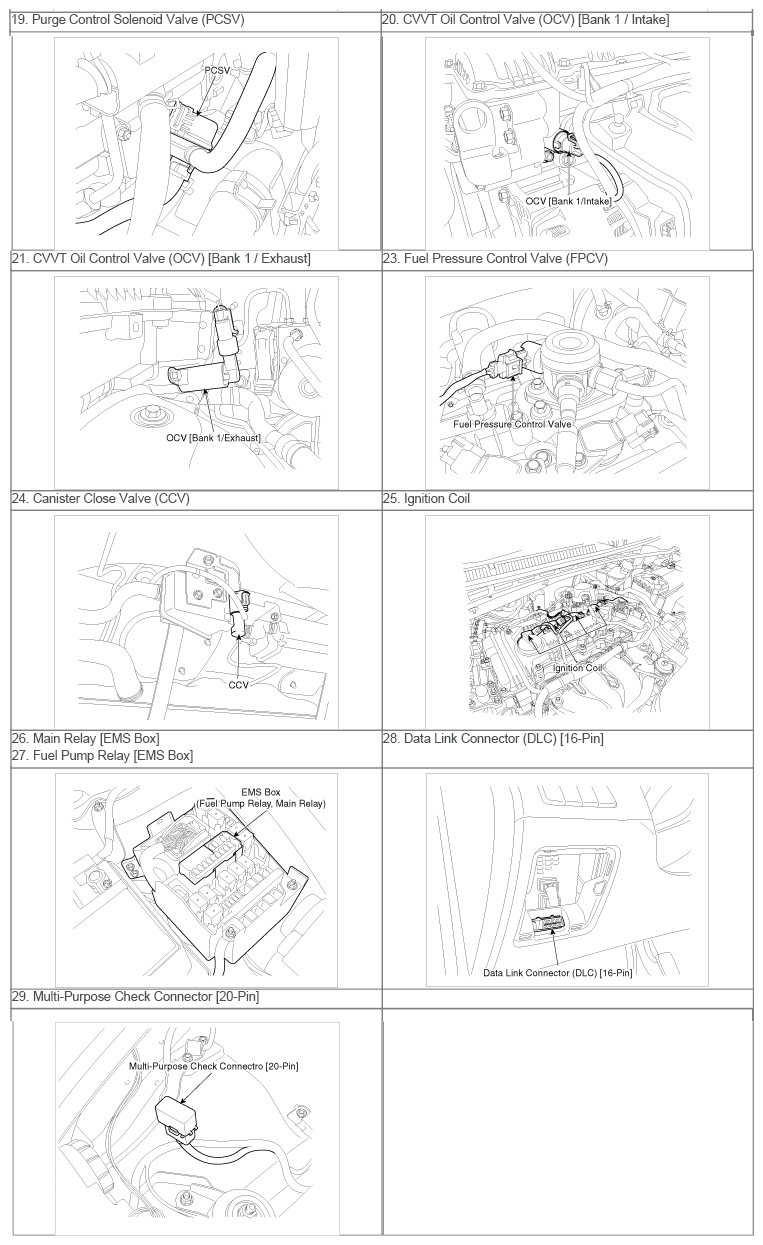

Fig 4: FPCV, Ignition Coil And CCV Components Location
G10749832Courtesy of HYUNDAI MOTOR AMERICA
