Components and Components Location: Components

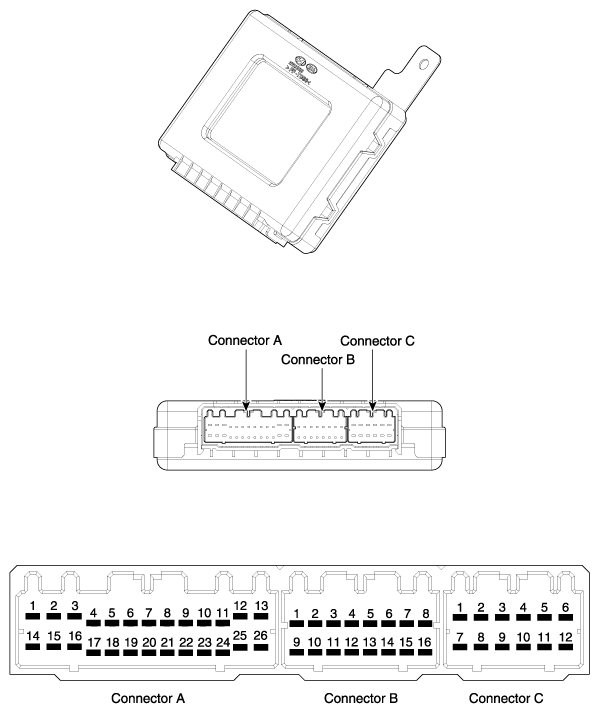

Fig 1: Body Control Module And Connector Terminal Identification
G10387044Courtesy of HYUNDAI MOTOR AMERICA
CONNECTOR PIN REFERENCE

No. Connector A Connector B Connector C
1 Battery B CAN high -
2 IGN 2 M CAN high -
3 - C CAN high -
4 - ATM solenoid -
5 Trunk open switch PAS ON indicator -
6 - - -
7 PAS OFF switch LIN PAS data -
8 - Defogger relay -
9 - B CAN low -
10 - M CAN low Rear room lamp
11 Crash door unlock C CAN low Foot lamp
12 Diagnosis Defogger indicator Rear curtain power
13 GND 1 Security indicator
14 IGN 1 Assist seat belt indicator
15 ACC Rain sensor data (LIN)
16 - Front room lamp
17 -
18 HBA (option)
19 -
20 -
21 Defogger switch
22 -
23 Parking brake switch
24 -
25 -
26 GND 2
