Components and Components Location: Components

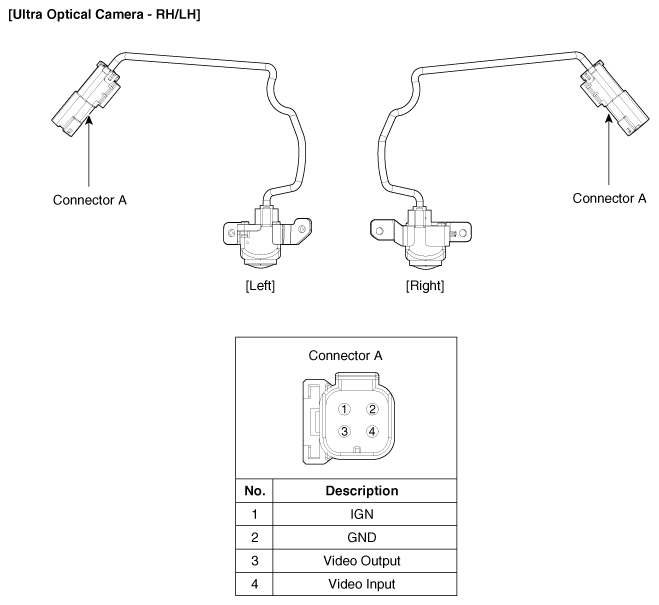

Fig 1: Pantoscopic Camera And Connector Terminal Identification (Ultra Optical Camera - RH/LH)
G10387527Courtesy of HYUNDAI MOTOR AMERICA

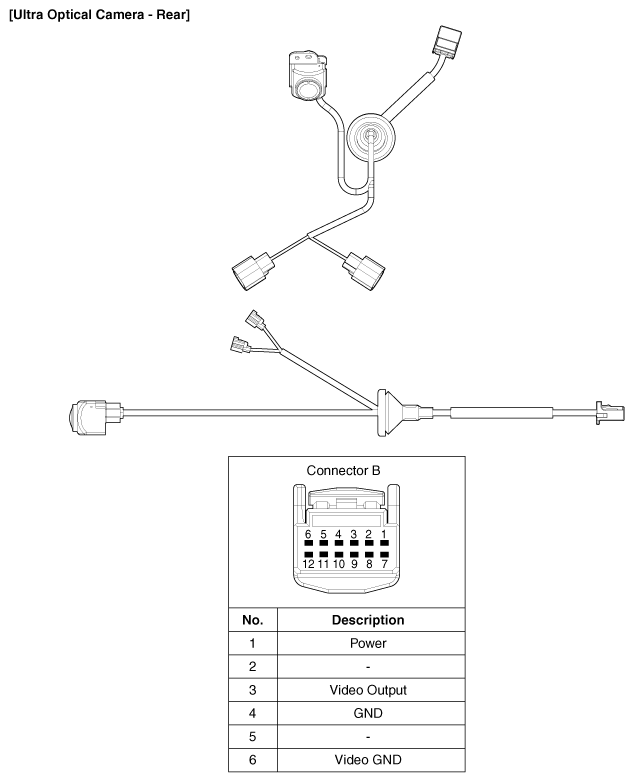

Fig 2: Pantoscopic Camera And Connector Terminal Identification (Ultra Optical Camera - Rear)
G10387528Courtesy of HYUNDAI MOTOR AMERICA
