Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "Neutralization mode".

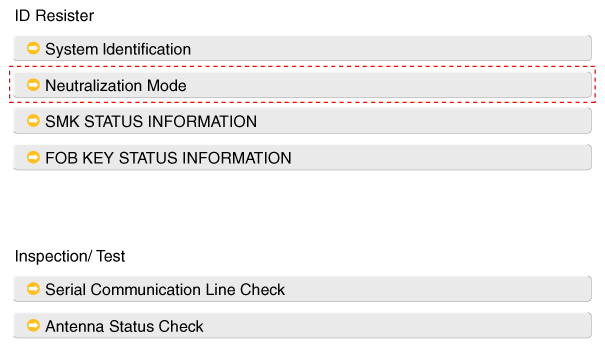

    Fig 1: Display - Neutralization Mode Screen (1 Of 7)
    G10387008Courtesy of HYUNDAI MOTOR AMERICA

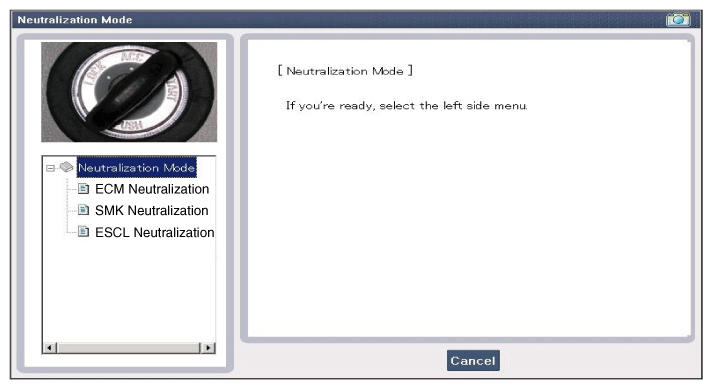

    Fig 2: Display - Neutralization Mode Screen (2 Of 7)
    G10387009Courtesy of HYUNDAI MOTOR AMERICA

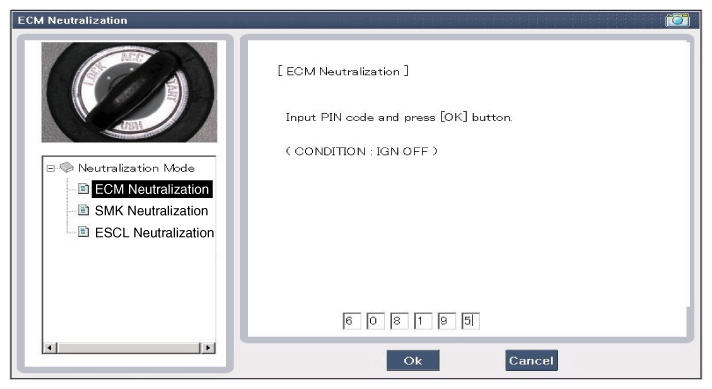

    Fig 3: Display - Neutralization Mode Screen (3 Of 7)
    G10387010Courtesy of HYUNDAI MOTOR AMERICA

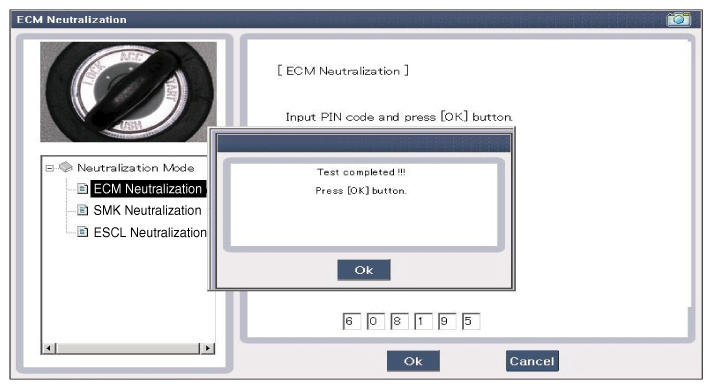

    Fig 4: Display - Neutralization Mode Screen (4 Of 7)
    G10387011Courtesy of HYUNDAI MOTOR AMERICA

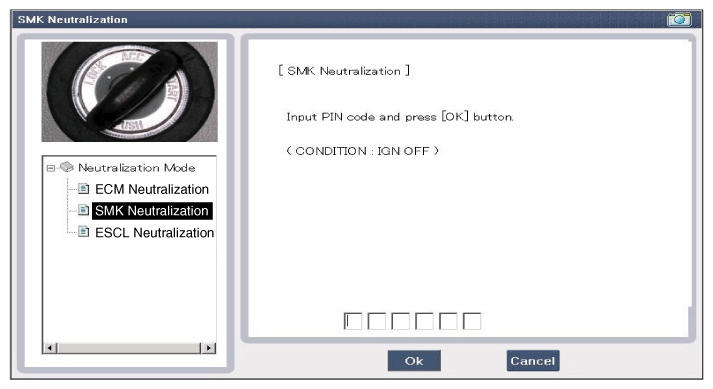

    Fig 5: Display - Neutralization Mode Screen (5 Of 7)
    G10387012Courtesy of HYUNDAI MOTOR AMERICA
    Fig 6: Display - Neutralization Mode Screen (6 Of 7)
    G10387013Courtesy of HYUNDAI MOTOR AMERICA

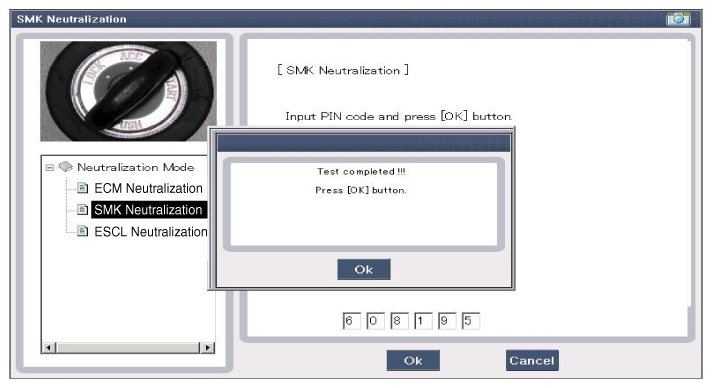

    Fig 7: Display - Neutralization Mode Screen (7 Of 7)
    G10387014Courtesy of HYUNDAI MOTOR AMERICA
INPUT SWITCH LIST

No Item name Unit
1 SSB switch 2 -
2 ACC -
3 IGN1 -
4 Gear 'P' Position -
5 Brake switch -
6 FL Door Lock Button -
7 FR Door Lock Button -
8 Trunk Lid switch -
9 Battery Voltage -
10 Alternator Voltage -
11 KEY out Indicator Lamp -
12 Immobilizer Lamp -
13 External Buzzer -
ACTUATOR LIST

No. Item name Condition
1 Immobilizer indicator Lamp Ignition switch ON Engine off
2 External Buzzer Ignition switch ON Engine off
3 Interior Antenna 1 Active Ignition switch ON Engine off
4 Interior Antenna 2 Active Ignition switch ON Engine off
5 Trunk Antenna Active Ignition switch ON Engine off
6 Bumper Antenna Active Ignition switch ON Engine off
7 DRV DR Antenna Active Ignition switch ON Engine off
8 AST DR Antenna Active Ignition switch ON Engine off
