Home >> Hyundai >> 2016 >> Equus Signature >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Oil Pump >> Components and Components Location >> Components

Components and Components Location: Components

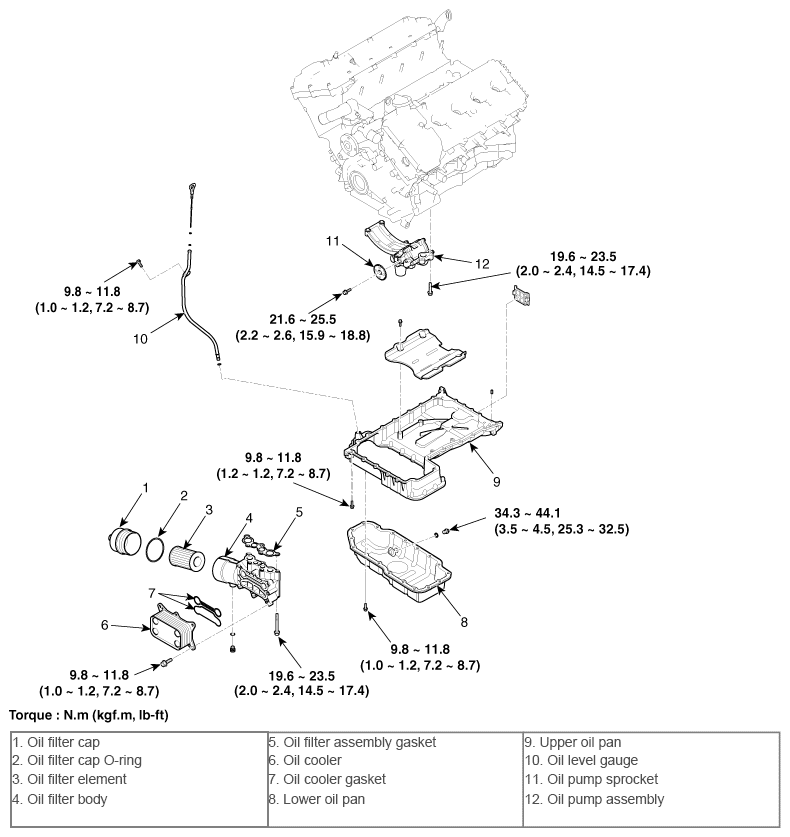

Fig 1: Oil Pump Components With Torque Specifications
G10382380Courtesy of HYUNDAI MOTOR AMERICA
