Home >> Hyundai >> 2016 >> Equus Signature >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Timing Chain >> Components and Components Location >> Components

Components and Components Location: Components

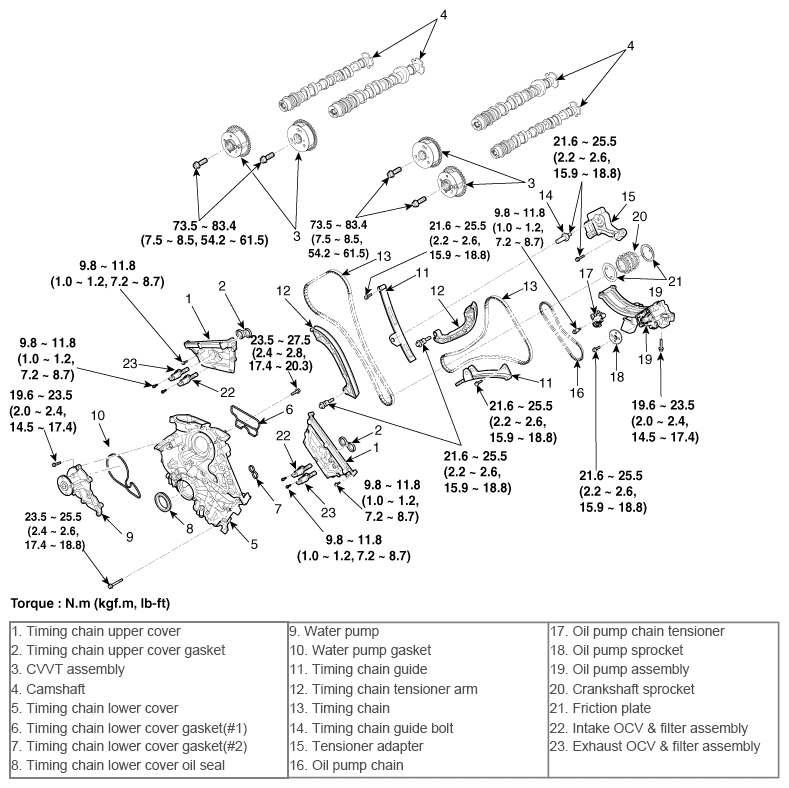

Fig 1: Timing System Components With Torque Specifications

G10382048

Courtesy of HYUNDAI MOTOR AMERICA
