Fuel Delivery System: Troubleshooting

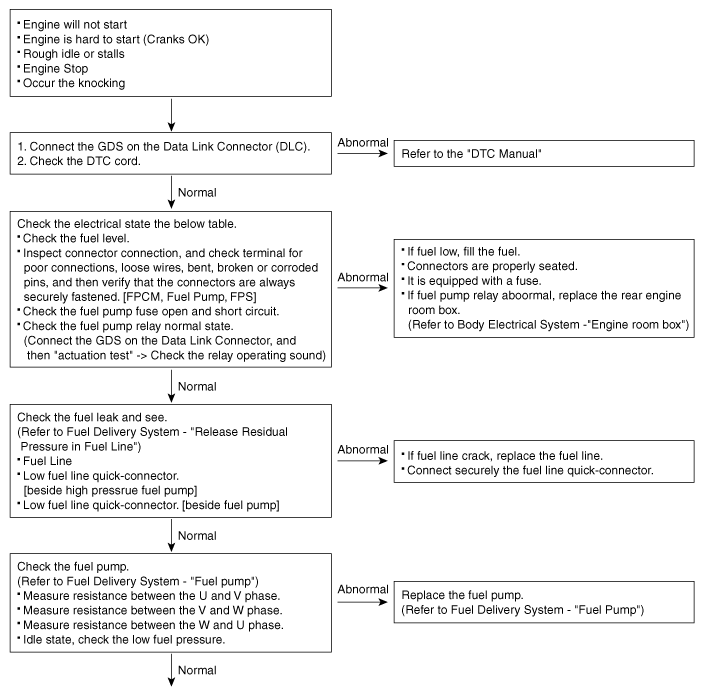

Fig 1: Fuel Pump Troubleshooting Flow Chart (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

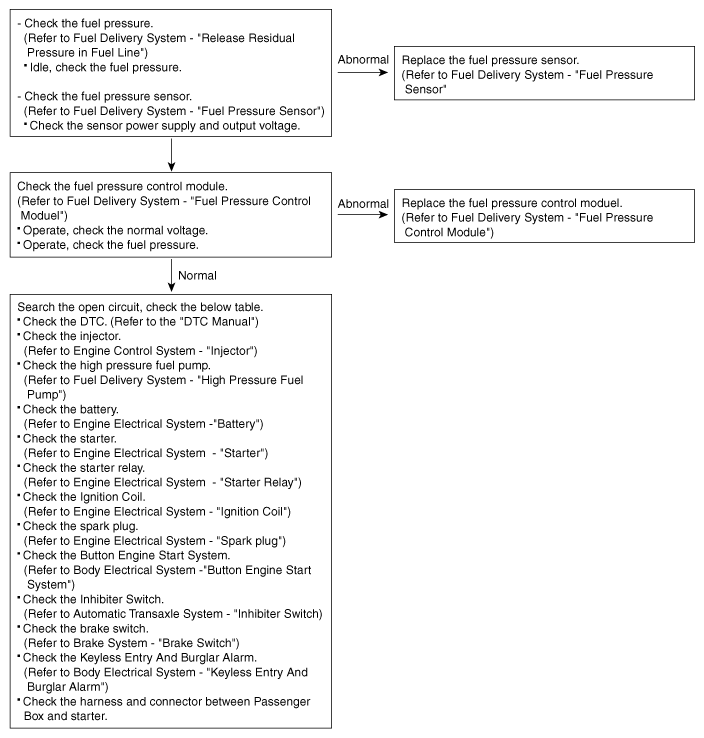

Fig 2: Fuel Pump Troubleshooting Flow Chart (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

• Check the fuel pressure after replacing parts.

  (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
