Components Location

Supplemental Restraint System Control Module (SRSCM)

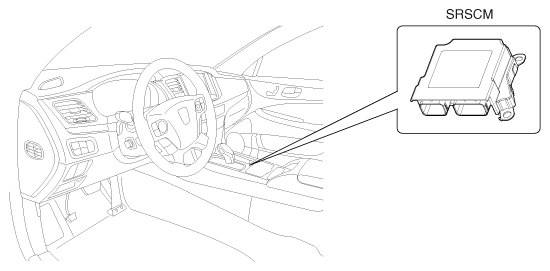

Fig 1: Supplemental Restraint System Control Module Component Location
G10383365Courtesy of HYUNDAI MOTOR AMERICA

Front Impact Sensor (FIS)

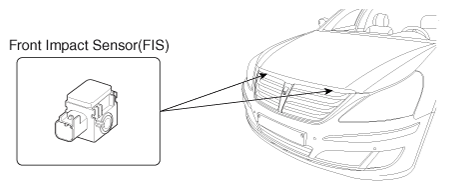

Fig 2: Front Impact Sensor Component Locations
G10383366Courtesy of HYUNDAI MOTOR AMERICA

Side Impact Sensor (SIS)

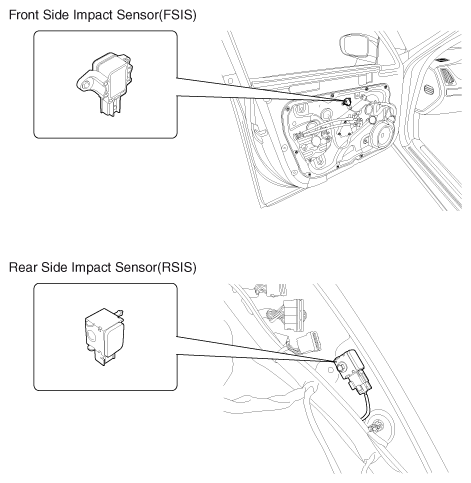

Fig 3: Side Impact Sensor Component Locations
G10383367Courtesy of HYUNDAI MOTOR AMERICA

Driver Airbag (DAB)/Passenger Airbag (PAB)/Knee Airbag (KAB)

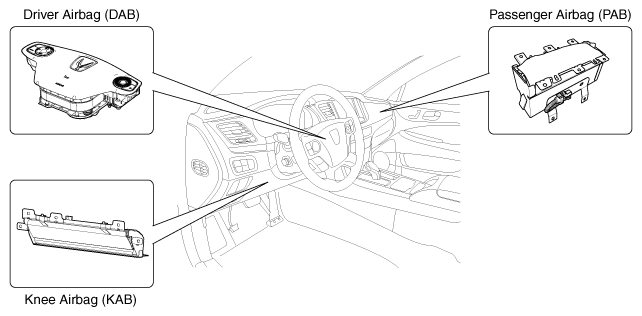

Fig 4: Driver Airbag, Passenger Airbag And Knee Airbag Component Locations
G10383368Courtesy of HYUNDAI MOTOR AMERICA

Side Airbag (SAB)

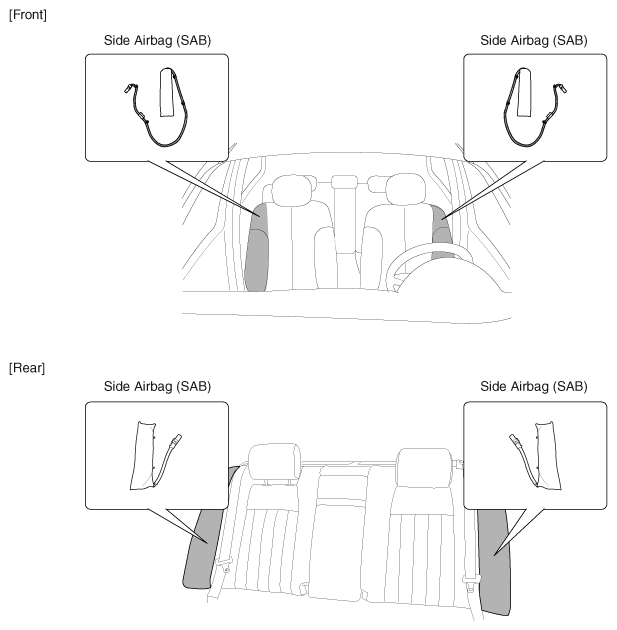

Fig 5: Side Airbag Component Locations
G10383369Courtesy of HYUNDAI MOTOR AMERICA

Curtain Airbag (CAB)

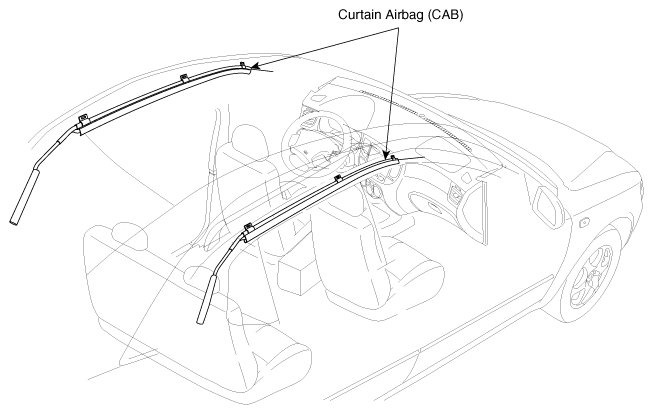

Fig 6: Curtain Airbag Component Locations
G10383370Courtesy of HYUNDAI MOTOR AMERICA

Seat Belt Pretensioner (BPT)

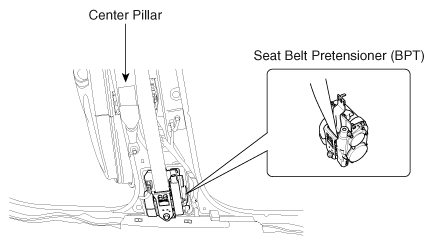

Fig 7: Seat Belt Pretensioner Component Location
G10383371Courtesy of HYUNDAI MOTOR AMERICA
