CVVT Oil Control Valve (OCV)
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

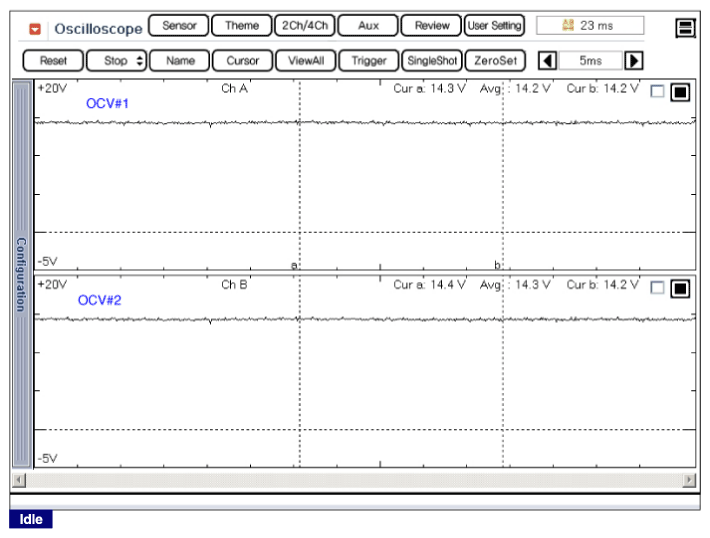

Fig 1: Oil Control Valve Voltage Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA

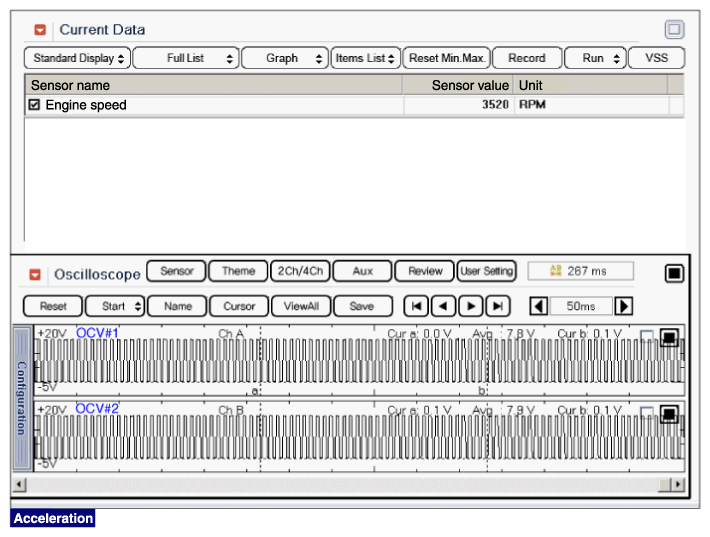

Fig 2: Oil Control Valve Voltage Signal Waveform (Acceleration)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
