Components and Components Location: Component

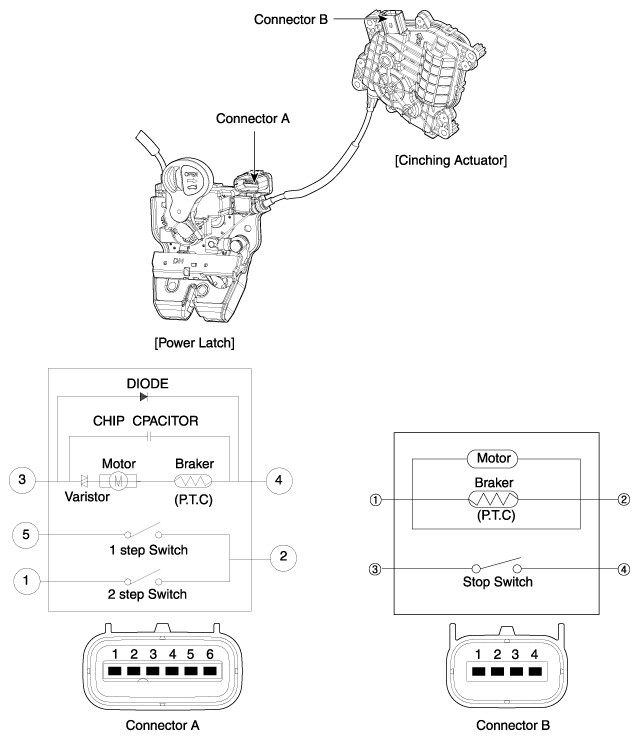

Fig 1: Power Latch Assembly And Terminals
G10454517Courtesy of HYUNDAI MOTOR AMERICA
